Sandvik Coromant
Sandvik Coromant 6199379 CoroCut® 1-2, N123H1-0400-RO 1105, N123x1-RO Insert, Carbide, 0.0708 in Max Depth of Cut, M/S

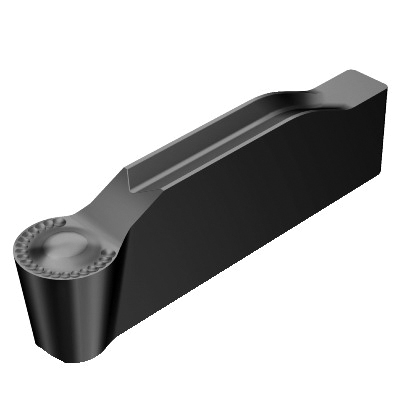

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6199379 CoroCut® 1-2, N123H1-0400-RO 1105, N123x1-RO Insert, Carbide, 0.0708 in Max Depth of Cut, M/S
SKU1247184
MFGR #6199379
Your Cost: $33.48/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RO Insert, 0.0708 in Maximum Depth of Cut, 0.1712 in Thickness, RO Chipbreaker, ANSI Code: N123H1-0400-RO 1105, 0.0787 in Corner Radius, Manufacturer's Grade: 1105, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RO Insert, 0.0708 in Maximum Depth of Cut, 0.1712 in Thickness, RO Chipbreaker, ANSI Code: N123H1-0400-RO 1105, 0.0787 in Corner Radius, Manufacturer's Grade: 1105, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number N123H1-0400-RO 1105 ANSI Code N123H1-0400-RO 1105 Catalog Number 6199379 Corner Radius 0.0787 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.1900 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.0708 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.1712 in UPC 11 69826268096 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RO Insert Size 0400 Insert Style N123x1-RO Manufacturer's Grade 1105 Material Carbide Material Grade M, S Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 4 mm W cutting E cutting edge condition Finishing operation Concave clamping -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.01 mm corner radius lower tolerance 0.01 mm corner radius upper tolerance 90 deg ramping 1 edge 0.1 - 0.18 mm/r cutting feed 7 insert mounting style code H insert seat size ANSI Code: N123H1-0400-RO 1105 ISO Code: N123H1-0400-RO 1105
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N123H1-0400-RO 1105 |
| ANSI Code | N123H1-0400-RO 1105 |
| Catalog Number | 6199379 |
| Corner Radius | 0.0787 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.1900 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.0708 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.1712 in |
| UPC 11 | 69826268096 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RO |
| Insert Size | 0400 |
| Insert Style | N123x1-RO |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M, S |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 4 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.01 mm corner radius lower tolerance |
| 0.01 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0.1 - 0.18 mm/r cutting feed |
| 7 insert mounting style code |
| H insert seat size |
| ANSI Code: N123H1-0400-RO 1105 |
| ISO Code: N123H1-0400-RO 1105 |
