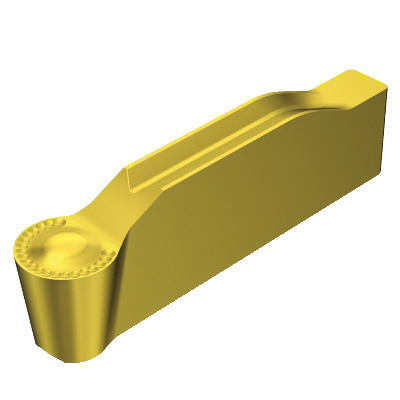

Sandvik Coromant 6199378 CoroCut® 1-2, N123F1-0300-RO S05F, N123x1-RO Insert, Carbide, 0.0511 in Max Depth of Cut, S
N123 Profiling Inserts
1247150
MFG #: 6199378
Sandvik Coromant
30.74000
/ ea
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x1-RO Insert, 0.0511 in Maximum Depth of Cut, 0.1692 in Thickness, RO Chipbreaker, ANSI Code: N123F1-0300-RO S05F, 0.059 in Corner Radius, Manufacturer's Grade: S05F, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
- Features
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 3 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.01 mm corner radius lower tolerance |
| 0.01 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0.1 - 0.18 mm/r cutting feed |
| 7 insert mounting style code |
| F insert seat size |
| ANSI Code: N123F1-0300-RO S05F |
| ISO Code: N123F1-0300-RO S05F |
