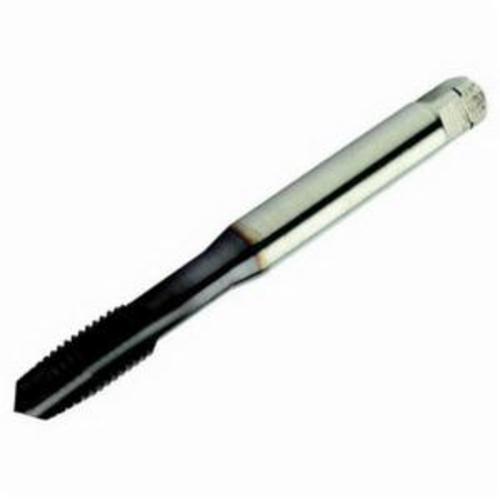

Sandvik Coromant 6182351 E872 CoroTap™ 200 Spiral Point Tap, Imperial, 5/16-18, UNC Thread, 3 Flutes, 2B, Plug, HSS-PM
Spiral Point Taps
1251778
MFG #: 6182351
Sandvik Coromant
73.19000
/ ea
Sandvik Coromant Spiral Point Tap, Series: E872 CoroTap™ 200, Measurement System: Imperial, 5/16-18, UNC, Plug Chamfer, 3 Flutes, PM HSS, PVD Coated, Class of Fit: 2B, Right Hand Cutting, 0.7086 in Thread Length, 3.5433 in Overall Length, 0.3179 in Shank Dia
- Features
| Without coolant entry |
| 5.65 mm neck diameter |
| 30.23 mm usable length |
| 6.6 mm pre-machined hole diameter |
| M material grade |
| Taps with spiral point grinding |
| Pushes the chips forward |
| For through hole applications |
| Strongest design due to shallow flutes used only for cutting fluid |
| 0.318 x 0.238 in tap shank adaptive interface machine direction |
| 2.5XD cutting depth |
| B3.5-5 chamfer |
