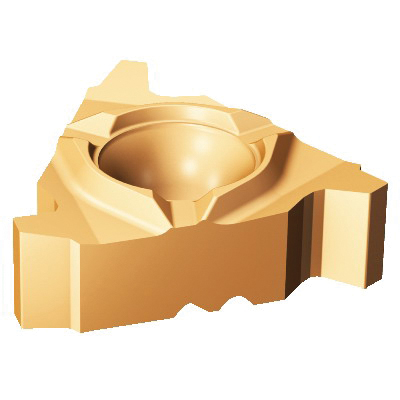

Sandvik Coromant 6153996 CoroThread® 266 Threading Insert, 266RL-22AC01A060M 1125, T-Triangle, 266RL..AC..A Insert, 6, Internal Thread, 266RL-22AC01A060M 1125
266RL Threading Inserts
1246350
MFG #: 6153996
Sandvik Coromant
63.80000
/ ea
Sandvik Coromant Threading Insert, Series: CoroThread® 266, 266RL..AC..A Insert, 22 Insert, T-Triangle, Internal, 6, 1/2 in Inscribed Circle, 0.219 in Thickness, ANSI Code: 266RL-22AC01A060M 1125, ISO Code: 266RL-22AC01A060M 1125, C Chipbreaker, Positive Rake, 60 deg Included Angle, Manufacturer's Grade: 1125, Right Hand, Carbide, PVD Coated, Material Grade: N
- Features
| 0 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole, rail bottom and non-flat surface |
| 5.7 mm Dia fixing hole |
| 5.19 mm H theoretical thread |
| 0.14 mm H difference thread |
| 8 mounting style code |
| 1 tooth count |
| 1.9 mm profile distance |
| 1.013 mm profile distance |
| AC29 thread form |
| 2.43 mm D maximum cutting |
| Screw mounting |
| 3 edges |
| 1/2 insert seat size code |
