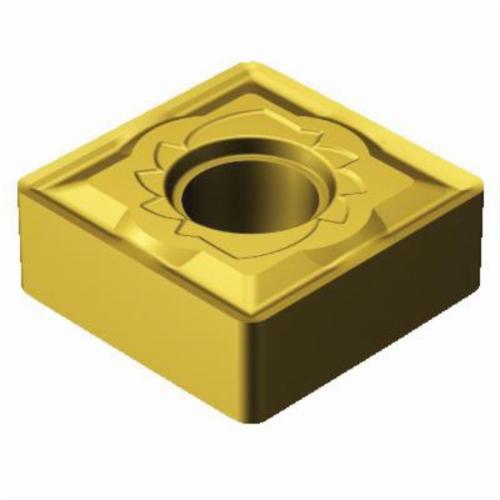

Sandvik Coromant 6066634 T-Max® P Negative Basic Shape Turning Insert, SNMG 643-SM S05F, S-Square, SNMG Insert, S05F, Carbide
SNMG Turning Inserts
1239720
MFG #: 6066634
Sandvik Coromant
29.29000
/ ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: SNMG 643-SM S05F, ISO Code: SNMG 19 06 12-SM S05F, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
- Features
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.5 mm/r cutting feed |
| 30 life cycle state |
