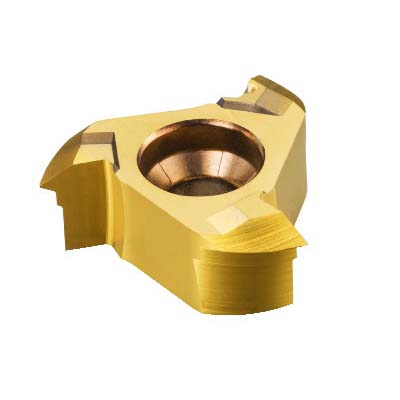

Sandvik Coromant 6010096 CoroMill® 327 Thread Milling Head, 327R09-18 150MM-TH 1025, 327..MM-TH Insert, Carbide, 1025, 327R09-18 150MM-TH 1025
327 Milling Inserts
1231327
MFG #: 6010096
Sandvik Coromant
89.51000
/ ea
Sandvik Coromant Thread Milling Head, Series: CoroMill® 327, 327..MM-TH Insert, 0.2303 in Length, Manufacturer's Grade: 1025, ANSI Code: 327R09-18 150MM-TH 1025, ISO Code: 327R09-18 150MM-TH 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
- Features
| 16.08 mm Dia neck |
| CoroMill® 327 adaptive interface |
| 0.81 mm maximum cutting depth |
| 16.08 mm Dia body |
| 0 deg body half taper |
| 10.62 mm Dia core at face |
| Without coolant entry |
| 17.7 mm Dia cutting |
| Standard flute |
| EFW feed direction |
| 0 deg neutral helix flute |
| 90 deg cutting edge |
| 4.8 mm L body |
| 4.8 mm L functional |
| 5.85 mm L usable |
| 5.85 mm maximum overhang |
| M60 thread form |
| 1.5 mm pitch |
| INT thread |
| 3 effective cutting edge |
