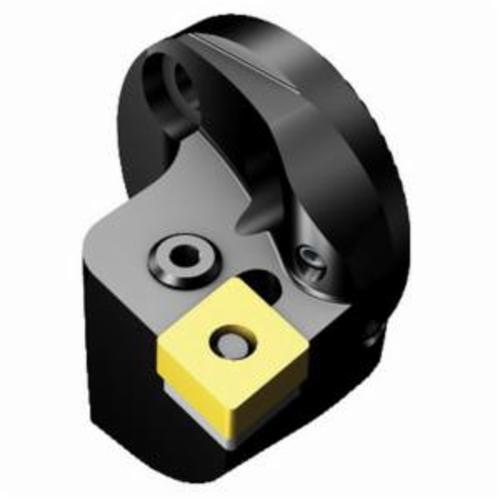

Sandvik Coromant 5962602 T-Max® P SL Screw Mounted Turning Head, 1.1023 in, 1.2559 in OAL, Right Hand, CNMG 090308 Insert
Modular Turning/Profiling Cutting Heads
1213261
MFG #: 5962602
Sandvik Coromant
587.71000
/ ea
Sandvik Coromant Turning Head, SL Screw Mounted, Series: T-Max® P, 1.1023 in Head Length/Projection, 1.2559 in Overall Length, CNMG Insert, Insert Compatibility: CNMG 090308, Right Hand Cutting, 0.748 in Center to Cutting Edge, Steel
- Features
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 0 deg body machine and workpiece side |
| Axial concentric coolant entry |
| 80 bar coolant |
| Lever hole clamping interface |
| Decentral focused coolant exit with nozzles |
| 25 mm Dia connection |
| 34 mm Dia minimum bore |
| -6 deg rake orthogonal |
| 95 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| 28 mm overhang |
| -5 deg lead |
| 0 deg ramping |
| C - 80 deg diamond insert shape |
| 1.7 Nm torque |
| SL-PCLNR/L..HP tool style |
| ANSI Code: SL-PCLNR-25-09HP-G |
| ISO Code: SL-PCLNR-25-09HP-G |
