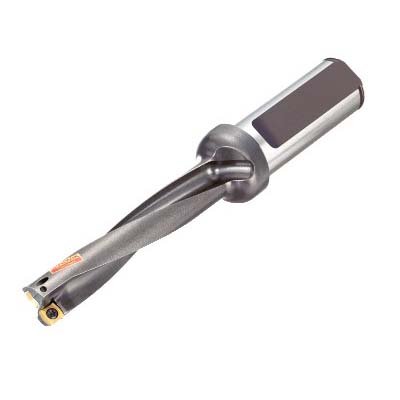

Sandvik Coromant 5962234 CoroDrill® 881 Insert Drill, 0.5905 in Drill, 0.7874 in Shank, 5.5905 in AOL, 2.9527 in D Maximum Drill, 5
Indexable Drills
1254486
MFG #: 5962234
Sandvik Coromant
734.70000
/ ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.5905 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 2.9527 in Maximum Drill Depth, 5.5905 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM), 2.9527 in Flute Length
- Features
| 91.7276 mm L functional |
| 20 mm Dia body |
| 50 mm L clamping |
| 0.2724 mm L point |
| 13500 r/min |
| -0.1 mm to 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 18.2 mm H shank |
| 0 deg inclination, 2 flutes |
| 78 deg cutting edge |
| 20 life cycle state |
| 78 mm L steel body |
| 881..Lxx-05 tool style |
