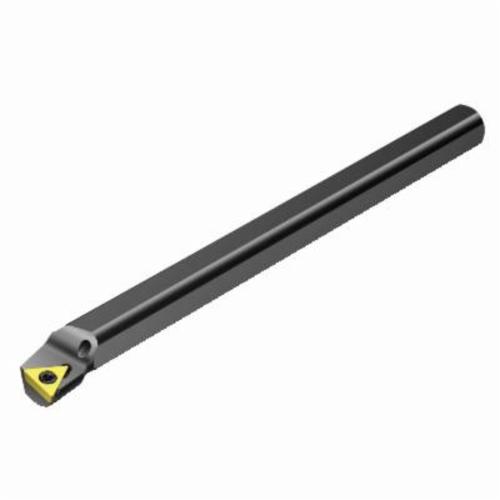

Sandvik Coromant 5937373 CoroTurn® 107 Indexable Boring Bar, 0.9842 in Min, 9.8425 in OAL, Left Hand
Indexable Boring Bars
1246878
MFG #: 5937373
Sandvik Coromant
226.14000
/ ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.9842 in Minimum Bore Dia, 3.1496 in Maximum Bore Depth, 9.8425 in Overall Length, 0.7874 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 0.5118 in Width Offset, Steel
- Features
Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
0 deg body workpiece side |
Axial concentric coolant entry |
Axial inclined coolant exit |
18 mm H shank |
0 deg orthogonal rake |
145.038 lbf/sq-in coolant pressure |
91 deg cutting edge |
-2.761 deg inclination |
20 life cycle state |
Coolant through |
-1 deg lead |
0 deg maximum ramping |
0.9 Nm torque |
40 - 60 deg insert screw clamping |
1/4 in insert seat |
ANSI Code: A20S-STFCL 11 |
ISO Code: A20S-STFCL 11 |
