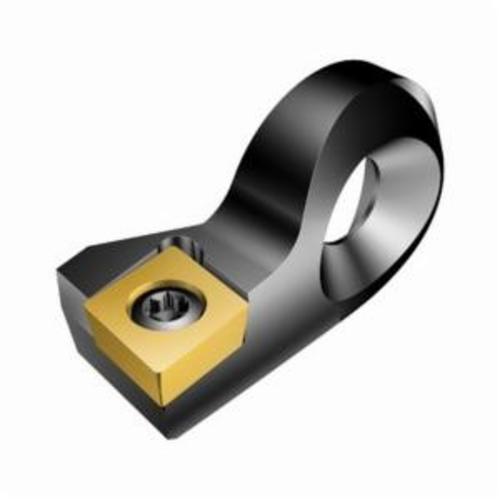

Sandvik Coromant 5928801, 3/8 in, SZ C Bore, R825..AF..C..C, Right Hand, CoroBore® 825/826 Boring Head
Boring Cartridges
576464
MFG #: 5928801
Sandvik Coromant
195.92000
/ ea
Sandvik Coromant Cartridge, SZ C Bore Dia, Right Hand Cutting, R825..AF..C..C Insert, Boring Head Compatibility: CoroBore® 825/826, 3/8 in Cartridge
- Features
| 90 deg body machine side |
| Steel body |
| Without coolant entry |
| 40 - 60 deg insert screw clamping interface |
| No coolant exit |
| 55 mm Dia minimum bore |
| 0 deg orthogonal rake |
| 95 deg tool cutting edge |
| 0 deg inclination |
| 27 mm L functional |
| CCMT 09 T3 04 (MIIDM), BORCRT_IND (MIIDN) interface |
| 38.8 mm OAL |
| 27 mm overhang |
| C - 80 deg diamond insert |
| 3 Nm torque |
| 10 mm W functional |
| Peripheral effective cutt edge count |
| 20 life cycle state |
| ANSI Code: R825C-AF27SCLC09T3 |
| ISO Code: R825C-AF27SCLC09T3 |
