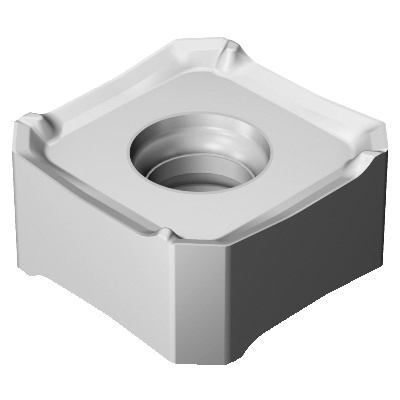

Sandvik Coromant 5910501 CoroMill® 345 Milling Insert, 345R-13T5E-ML S30T, S-Square, 345R/L..E-ML Insert, Carbide, S30T, 345R-13T5E-ML S30T
345R/345L Milling Inserts
1232715
MFG #: 5910501
Sandvik Coromant
32.96000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..E-ML Insert, S-Square, 0.5118 in Inscribed Circle, 0.2342 in Thickness, 0.5118 in Length, ML Chipbreaker, 0.0314 in Corner Radius, 30 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: 345R-13T5E-ML S30T, ISO Code: 345R-13T5E-ML S30T, Right Hand, Carbide, PVD Coated, Material Grade: M
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 2 mm L wiper edge |
| 107 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 8 cutting edge |
| 0.07 to 0.2 mm/r cutting feed |
