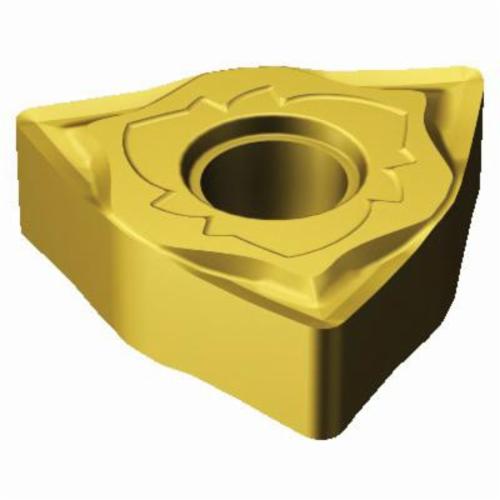

Sandvik Coromant 5909099 T-Max® P Negative Basic Shape Turning Insert, WNGG 431-SGF S05F, W-Trigon, WNGG Insert, S05F, Carbide
WNGG Turning Inserts
1237658
MFG #: 5909099
Sandvik Coromant
22.53000
/ ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, WNGG Insert, W-Trigon, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.342 in Length, SGF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: WNGG 431-SGF S05F, ISO Code: WNGG 08 04 04-SGF S05F, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
- Features
| Positive insert shape |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Tools with high pressure coolant |
| Insert geometries and grades for all materials |
| 0.05 - 0.25 mm/r cutting feed |
| 20 life cycle state |
