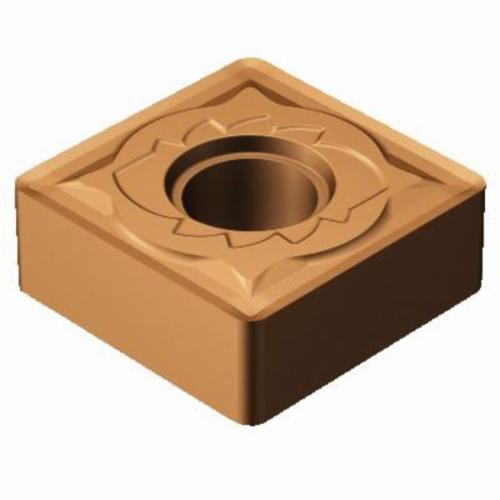

Sandvik Coromant 5909055 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-SMR 1115, S-Square, SNMG Insert, 1115
SNMG Turning Inserts
1238578
MFG #: 5909055
Sandvik Coromant
15.60000
/ ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, SMR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: SNMG 432-SMR 1115, ISO Code: SNMG 12 04 08-SMR 1115, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
- Features
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.4 mm/r cutting feed |
| 20 life cycle state |
