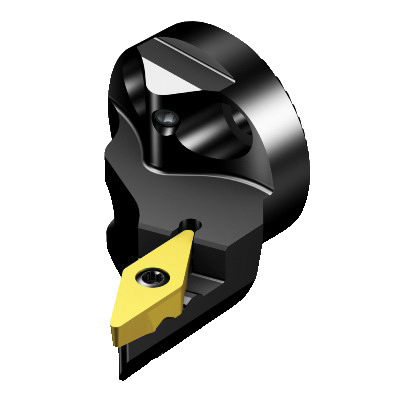

Sandvik Coromant 5856116 CoroTurn® TR Thread Turning Head, 1.6535 in, 1.8031 in OAL, Left Hand, TR-VB1308 Insert
Modular Turning/Profiling Cutting Heads
1248621
MFG #: 5856116
Sandvik Coromant
553.37000
/ ea
Sandvik Coromant Thread Turning Head, Series: CoroTurn® TR, 1.6535 in Head Length/Projection, 1.8031 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: TR-VB1308, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
- Features
0 deg body machine side |
20 life cycle state |
0 deg body workpiece side |
Axial concentric entry |
80 bar coolant |
40 - 60 deg insert screw, rail bottom |
Decentral focused exit with nozzles |
40 mm Dia connection |
93 deg cutting edge |
13 mm insert seat |
2 Nm torque |
TR-SL-V13JBR/L..HP-X tool style |
-3 deg lead |
0 deg inclination |
0 deg rake |
ANSI Code: TR-SL-V13JBL-40HP-X |
ISO Code: TR-SL-V13JBL-40HP-X |
