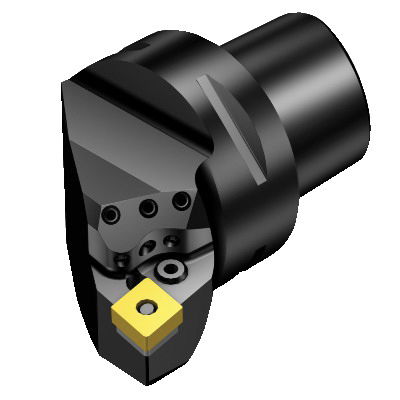

Sandvik Coromant 5853300 T-Max® P Turning Cutting Unit, 3.1496 in, 5.0393 in OAL, Left Hand, CNMG 160612 Insert
Modular Turning/Profiling Cutting Heads
920228
MFG #: 5853300
Sandvik Coromant
701.35000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 5.0393 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 160612, Left Hand Cutting, 2.1653 in Center to Cutting Edge, Steel
- Features
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 80 mm Dia connection |
| 125 - 250 mm Dia minimum bore |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 5 Nm torque |
| 5/8 in insert seat size |
| 80 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C8-PCLNL-55080-16HP |
| ISO Code: C8-PCLNL-55080-16HP |
