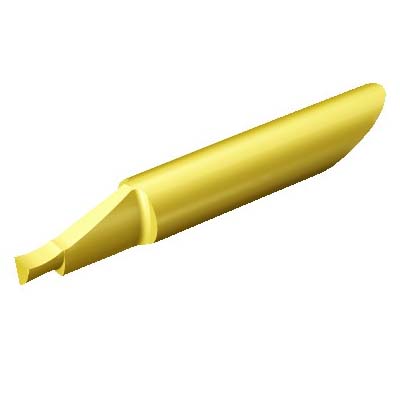

Sandvik Coromant 5848999 CoroTurn® XS Face Grooving Tool/Insert, CXS-06F100-6215AL 1025 ANSI, CXS..F..AR/L (1) Insert, 1025
Custom_Product_Images_Illustration
Sandvik Coromant 5848999 CoroTurn® XS Face Grooving Tool/Insert, CXS-06F100-6215AL 1025 ANSI, CXS..F..AR/L (1) Insert, 1025
SKU1242464
MFGR #5848999
Your Cost: $62.16/ea
List: Sandvik Coromant Face Grooving Tool/Insert, Series: CoroTurn® XS, CXS..F..AR/L (1) Insert, 0.0393 in Cutting Width, 0.0787 in Maximum Depth of Cut, 0.0059 in Corner Radius, 0 deg Rake, 1.6732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06F100-6215AL 1025, ISO Code: CXS-06F100-6215AL 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: N/P/S
Sandvik Coromant Face Grooving Tool/Insert, Series: CoroTurn® XS, CXS..F..AR/L (1) Insert, 0.0393 in Cutting Width, 0.0787 in Maximum Depth of Cut, 0.0059 in Corner Radius, 0 deg Rake, 1.6732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06F100-6215AL 1025, ISO Code: CXS-06F100-6215AL 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: N/P/S
Alternate Catalog Number CXS-06F100-6215AL 1025 Catalog Number 5848999 Country of Origin GB Finish PVD TiAlN/TiN Coated Groove Width 1 mm Gross Weight Per Pack 5.0700 lb Item Group 325 Material Grade 1025 Maximum Hole Depth 2 mm Minimum Hole Diameter 4.2 mm Overall Length 42.5 mm Projection 18 mm Series CoroTurn® XS Shank Diameter 6 mm UPC 11 69826251053 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Material Solid Carbide Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool 20 life cycle state Without coolant entry 0 mm W cutting lower tolerance 0.05 mm cutting width upper tolerance No coolant exit 4.2 mm minimum axial groove ID 6 mm Dia connection 90 deg cutting edge 0 deg inclination 0 deg body workpiece side 37.3 mm L functional 18 mm maximum overhang -0.02 mm corner radius lower tolerance 0.02 mm corner radius upper tolerance 2.95 mm W functiona
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-06F100-6215AL 1025 |
| Catalog Number | 5848999 |
| Country of Origin | GB |
| Finish | PVD TiAlN/TiN Coated |
| Groove Width | 1 mm |
| Gross Weight Per Pack | 5.0700 lb |
| Item Group | 325 |
| Material Grade | 1025 |
| Maximum Hole Depth | 2 mm |
| Minimum Hole Diameter | 4.2 mm |
| Overall Length | 42.5 mm |
| Projection | 18 mm |
| Series | CoroTurn® XS |
| Shank Diameter | 6 mm |
| UPC 11 | 69826251053 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Material | Solid Carbide |
| Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool |
| 20 life cycle state |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm cutting width upper tolerance |
| No coolant exit |
| 4.2 mm minimum axial groove ID |
| 6 mm Dia connection |
| 90 deg cutting edge |
| 0 deg inclination |
| 0 deg body workpiece side |
| 37.3 mm L functional |
| 18 mm maximum overhang |
| -0.02 mm corner radius lower tolerance |
| 0.02 mm corner radius upper tolerance |
| 2.95 mm W functiona |
