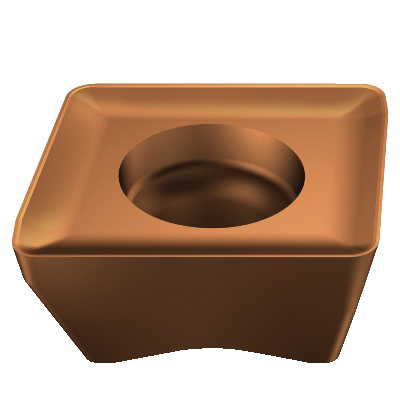

Sandvik Coromant 5764872 CoroMill® 690 Milling Insert, 690-100531M-E-SL 1030 ANSI, S-Square, 690..E-SL Insert, Carbide, 1030
690 Milling Inserts
1251954
MFG #: 5764872
Sandvik Coromant
27.48000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 690, 690..E-SL Insert, S-Square, 0.3937 in Inscribed Circle, 0.1377 in Thickness, 0.3937 in Width, 0.3937 in Length, SL Chipbreaker, 0.122 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1771 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 690-100531M-E-SL 1030, ISO Code: 690-100531M-E-SL 1030, Right Hand, Carbide, PVD Coated, Material Grade: S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.2 mm/r cutting feed |
