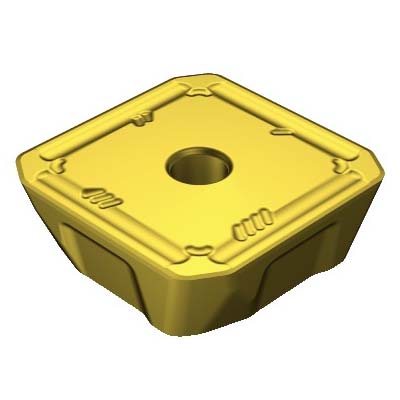

Sandvik Coromant 5759203 CoroMill® 360 Milling Insert, 360R-19 06M-MH 2030, S-Square, 360R/L..M-MH Insert, Carbide, 2030, 360R-19 06M-MH 2030
360R/360L Milling Inserts
1058304
MFG #: 5759203
Sandvik Coromant
40.65000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 360, 360R/L..M-MH Insert, S-Square, 0.7456 in Inscribed Circle, 1/4 in Thickness, 0.7456 in Length, MH Chipbreaker, 0.0629 in Corner Radius, 0 deg Rake, 30 deg Lead Angle, 0.1496 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: 360R-19 06M-MH 2030, ISO Code: 360R-19 06M-MH 2030, Right Hand, Carbide, PVD Coated, Material Grade: M
- Features
| Flat surface clamping interface |
| 13 mm D cutting |
| 2.2 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 60 deg major cutting edge |
| 15 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.3 to 0.69 mm/r cutting feed |
