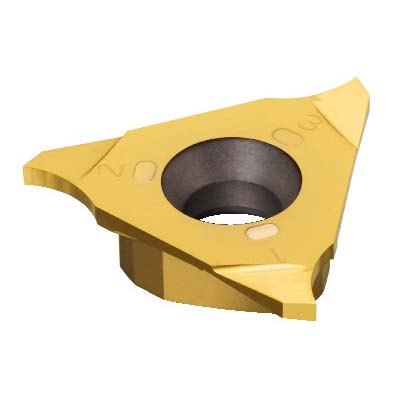

Sandvik Coromant 5758750 CoroMill® 328 Groove Milling Insert, 328R13-265 02-GM 1025, 328-GM Insert, Carbide, 1025, 328R13-265 02-GM 1025
328 Milling Inserts
1232222
MFG #: 5758750
Sandvik Coromant
61.92000
/ ea
Sandvik Coromant Groove Milling Insert, Series: CoroMill® 328, 328-GM Insert, 0.2125 in Length, GM Chipbreaker, 0.0059 in Corner Radius, Manufacturer's Grade: 1025, ANSI Code: 328R13-265 02-GM 1025, ISO Code: 328R13-265 02-GM 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
- Features
| 40 - 60 countersunk hole and non-flat surface clamping interface |
| 6 deg clearance |
| 5 mm D maximum cutting |
| F cutting edge condition |
| 2.65 mm W cutting |
| 1-side cutting |
| +/-0.05 mm corner radius tolerance |
| 20 life cycle state |
