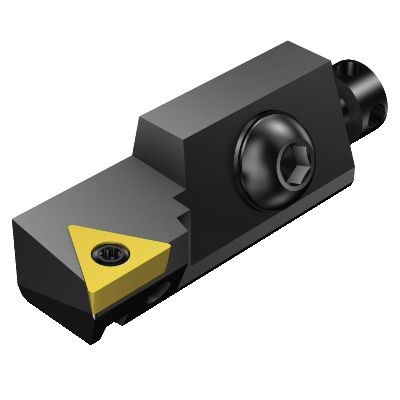

Sandvik Coromant 5751526 CoroTurn® 107, TCMT 16 T3 08(MIIDM) and TCMT 3(2.5)2(MIIDN) Insert, STGCR/L..CA Insert, Left Hand
Indexable Turning Cartridges
1233968
MFG #: 5751526
Sandvik Coromant
237.60000
/ ea
Sandvik Coromant Turning Cartridge, Series: CoroTurn® 107, STGCR/L..CA Insert, Insert Compatibility: TCMT 16 T3 08(MIIDM) and TCMT 3(2.5)2(MIIDN), Left Hand Cutting, Steel
- Features
| -1 to 1 mm adjustment limit |
| 20 mm W shank |
| Without coolant entry |
| 40 - 60 deg insert screw clamping interface |
| No coolant exit |
| 9 mm Dia access hole |
| 60 - 75 mm Dia minimum bore |
| 63 mm OAL |
| T - Triangle shape |
| -5 deg orthogonal |
| 21 mm H shank |
| 16 mm H functional |
| 90 |
| -3 deg inclination |
| 63 mm L functional |
| 38 mm L head |
| 45 deg mounting hole |
| 45 deg mounting hole |
| 25 mm mounting hole distance |
| TCMT 16 T3 08 master insert identification |
