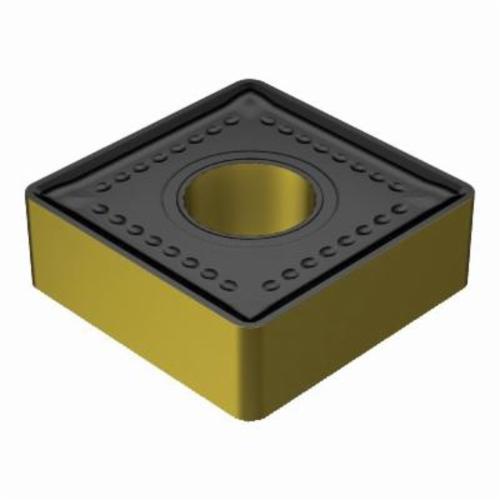

Sandvik Coromant 5750763 T-Max® P Negative Basic Shape Turning Insert, SNMM 646-MR 4205, S-Square, SNMM Insert, 4205, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5750763 T-Max® P Negative Basic Shape Turning Insert, SNMM 646-MR 4205, S-Square, SNMM Insert, 4205, Carbide
SKU1239173
MFGR #5750763
Your Cost: $34.84/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMM Insert, S-Square, 12 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, MR Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4205, ANSI Code: SNMM 646-MR 4205, ISO Code: SNMM 19 06 24-MR 4205, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMM Insert, S-Square, 12 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, MR Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4205, ANSI Code: SNMM 646-MR 4205, ISO Code: SNMM 19 06 24-MR 4205, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code SNMM 646-MR 4205 Catalog Number 5750763 Corner Radius 0.094 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6200 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMM 19 06 24-MR 4205 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826241553 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Steel Inscribed Circle 3/4 in Insert Size 646 Insert Style SNMM Manufacturer's Grade 4205 Material Carbide Material Grade P Maximum Depth of Cut 0.472 in Rake Negative Seat Size 19 Shape Square Medium machining with wiper technology High surface quality High feed rates Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMM 646-MR 4205 |
| Catalog Number | 5750763 |
| Corner Radius | 0.094 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6200 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMM 19 06 24-MR 4205 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826241553 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 646 |
| Insert Style | SNMM |
| Manufacturer's Grade | 4205 |
| Material | Carbide |
| Material Grade | P |
| Maximum Depth of Cut | 0.472 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| Medium machining with wiper technology |
| High surface quality |
| High feed rates |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
