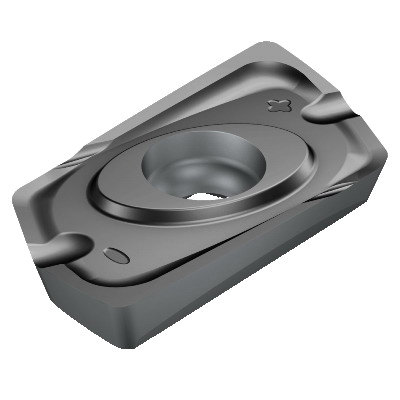

Sandvik Coromant 5747825 CoroMill® 790 Milling Insert, R790-220508PH-PL 1010, R-Rectangle, R790..PH-PL Insert, Carbide, 1010, R790-220508PH-PL 1010
R790 Milling Inserts
1251463
MFG #: 5747825
Sandvik Coromant
69.98000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 790, R790..PH-PL Insert, R-Rectangle, 0.63 in Inscribed Circle, 0.1968 in Thickness, 0.6299 in Width, 0.5118 in Length, PL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: R790-220508PH-PL 1010, ISO Code: R790-220508PH-PL 1010, Right Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 25 deg clearance |
| 18 mm D cutting |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 18 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
