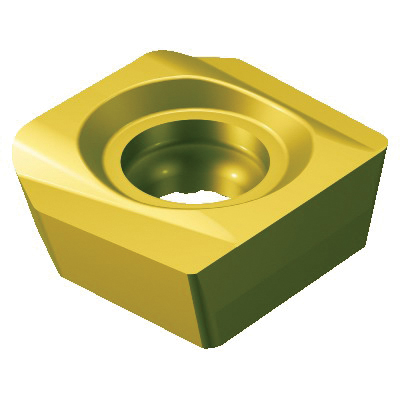

Sandvik Coromant 5747612 Century Milling Insert, R590-110508H-KW 1020, C-80 deg Diamond, R/L590..H..W Insert, Carbide, 1020, R590-110508H-KW 1020
R590/L590 Milling Inserts
1242695
MFG #: 5747612
Sandvik Coromant
37.95000
/ ea
Sandvik Coromant Milling Insert, Series: Century, R/L590..H..W Insert, C-80 deg Diamond, 0.433 in Inscribed Circle, 0.1968 in Thickness, 0.4527 in Width, 0.5118 in Length, KW Chipbreaker, 0.0314 in Corner Radius, 20 deg Positive Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: R590-110508H-KW 1020, ISO Code: R590-110508H-KW 1020, Right Hand, Carbide, PVD Coated, Material Grade: K
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 2 mm D cutting |
| 7 mm L wiper edge |
| 500 mm wiper edge radius |
| 90 deg major cutting edge |
| 11 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 1 corner |
| E cutting edge condition |
| 1 cutting edge |
| Screw clamp mounting |
