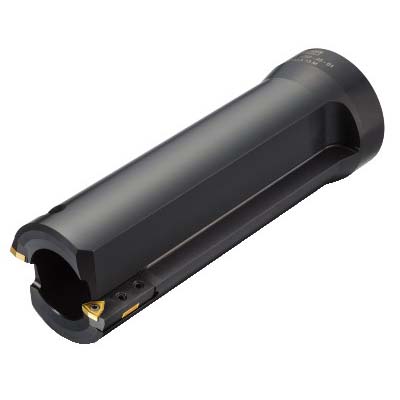

Sandvik Coromant 5747343 Right Hand Trepanning Tool, 3.3464 in Drill, 3.1496 in Shank, 8.4645 in Maximum Drill
Circle Cutter & Trepanning Tools
1232329
MFG #: 5747343
Sandvik Coromant
1791.69000
/ ea
Sandvik Coromant Trepanning Tool, Right Hand, 3.3464 in Drill, 3.1496 in Shank Dia, 8.4645 in Maximum Drill Depth, Insert Compatibility: WCMX 06.., 8.4645 in Flute Length
- Features
| 260 mm L functional |
| 3/8 in insert seat size |
| Axial concentric coolant entry |
| 40 - 60 deg insert screw clamping |
| Axial inclined exit |
| 20 bar coolant |
| 49 mm Dia internal cutting |
| 85 deg cutting edge |
| 20 life cycle state |
| 215 mm L usable |
| WCMX 06.. master insert |
| 02 to 02 mm achievable hole tolerance |
| 8.4646 in D drilling |
| 0.827in Dia |
| 2 inserts required |
| 36 mm L shank |
| Varilock 80 Dia shank |
| R416.7 tool style |
| ANSI Code: R416.7-0850-25-01 |
| ISO Code: R416.7-0850-25-01 |
