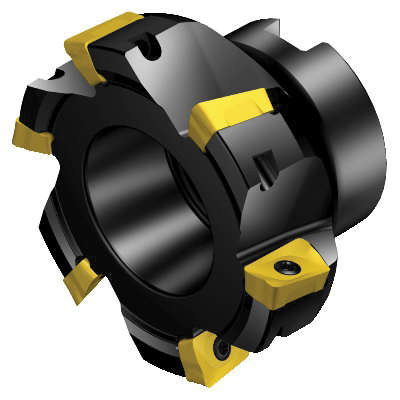

Sandvik Coromant 5745535 CoroMill® 390 Square Shoulder Milling Cutter, R390..Qxx Insert, 2.4803 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Indexable Shoulder Mills
1234754
MFG #: 5745535
Sandvik Coromant
915.20000
/ ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 2.4803 in Cutting Dia, 1.5748 in Overall Length, 0.394 in Maximum Depth of Cut, R390..Qxx Insert, 6 Inserts, Insert Compatibility: R390-11, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: R390-063Q22-11M, ISO Code: R390-063Q22-11M, Steel
- Features
| 1 mm D plunge |
| Without coolant entry |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 63 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40 mm overhang |
| 1.2 deg maximum ramping |
| 20700 r/min cutting feed |
| 1.2 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
