Sandvik Coromant 5744143 CoroMill® 290 Milling Insert, R290.90-12T308PPM-WL235 ANSI, S-Square, R/L290.90..M-WL Insert, Carbide
R290/L290 Milling Inserts
79789
MFG #: 5744143
Sandvik Coromant
15.07000
/ ea

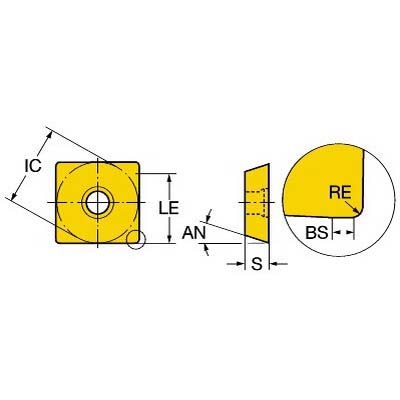

Sandvik Coromant Milling Insert, Series: CoroMill® 290, R/L290.90..M-WL Insert, S-Square, 0.5232 in Inscribed Circle, 0.1562 in Thickness, 0.5232 in Length, WL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: R290.90-12T308PPM-WL235, ISO Code: R290.90-12T308PPM-WL235, Right Hand, Carbide, CVD Coated, Material Grade: M/P
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 18 deg clearance |
| 10.7 mm D cutting |
| 1.53 mm L wiper edge |
| 90 deg included |
| 90 deg major cutting edge |
| 10.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
