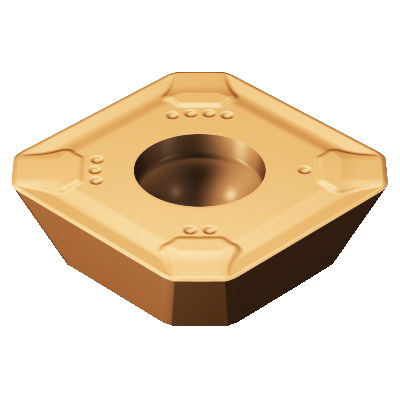

Sandvik Coromant 5744023 CoroMill® 245 Milling Insert, R245-18 T6 M-PM 1030 ANSI, S-Square, R245..M-PM Insert, Carbide, 1030
R245 Milling Inserts
426618
MFG #: 5744023
Sandvik Coromant
23.92000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-PM Insert, S-Square, 0.7086 in Inscribed Circle, 0.2401 in Thickness, 0.7086 in Length, PM Chipbreaker, 0.0393 in Corner Radius, 10 deg Positive Rake, 45 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R245-18 T6 M-PM 1030, ISO Code: R245-18 T6 M-PM 1030, Right Hand, Carbide, PVD Coated, Material Grade: M/P
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 9.75 mm D cutting |
| 1.5 mm L wiper edge |
| 90 deg included |
| 45 deg major cutting edge |
| 13.9 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.15 to 0.49 mm/r cutting feed |
