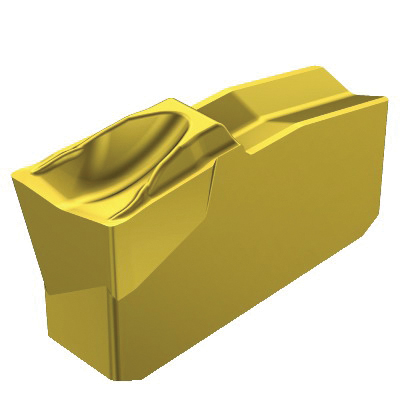

Sandvik Coromant 5741784 T-Max® Q-Cut, R151.2-250 05-7E 235, R/L151.2-7E Insert, Carbide, 235, R151.2-250 05-7E 235
Custom_Product_Images_Illustration
Sandvik Coromant 5741784 T-Max® Q-Cut, R151.2-250 05-7E 235, R/L151.2-7E Insert, Carbide, 235, R151.2-250 05-7E 235
SKU1236744
MFGR #5741784
Your Cost: $19.79/ea
List: Sandvik Coromant Parting Insert, Series: T-Max® Q-Cut, R/L151.2-7E Insert, 0.2672 in Thickness, 0.0984 in Width, 0.218 in Length, 7E Chipbreaker, 0.005 in Corner Radius, Manufacturer's Grade: 235, ANSI Code: R151.2-250 05-7E 235, ISO Code: R151.2-250 05-7E 235, Right Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Parting Insert, Series: T-Max® Q-Cut, R/L151.2-7E Insert, 0.2672 in Thickness, 0.0984 in Width, 0.218 in Length, 7E Chipbreaker, 0.005 in Corner Radius, Manufacturer's Grade: 235, ANSI Code: R151.2-250 05-7E 235, ISO Code: R151.2-250 05-7E 235, Right Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number R151.2-250 05-7E 235 ANSI Code R151.2-250 05-7E 235 Catalog Number 5741784 Country of Origin JP Finish CVD-TiCN+TiN Coated Gross Weight Per Pack 5.0900 lb Hand of Insert Right ISO Code R151.2-250 05-7E 235 Item Group 310 Length 0.218 in Material Grade M, P, S Series T-Max® Q-Cut Thickness 0.2672 in UPC 11 69826205697 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 7E Corner Radius 0.006 in Cutting Width 0.0000 in Insert Size 25 Insert Style R151.2 Lead Angle 5 ° Manufacturer's Grade 235 Material Carbide Relief Angle 7 ° Dedicated geometries and grades for all materials V-clamped 1-edged insert for good stability For long overhangs and parting off big components Finishing operation Concave clamping 0 mm cutting width lower tolerance 0.1 mm W cutting upper tolerance 5 deg major right hand cutting edge -0.1 mm corner radius lower tolerance 0.1 mm corner radius upper tolerance E cutting edge condition 5 deg lead 1 edge V or rail clamp with screw mounting Positive rake 0.02 - 0.1 mm/r cutting feed 7 insert mounting style code 25 insert seat size code
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R151.2-250 05-7E 235 |
| ANSI Code | R151.2-250 05-7E 235 |
| Catalog Number | 5741784 |
| Country of Origin | JP |
| Finish | CVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 5.0900 lb |
| Hand of Insert | Right |
| ISO Code | R151.2-250 05-7E 235 |
| Item Group | 310 |
| Length | 0.218 in |
| Material Grade | M, P, S |
| Series | T-Max® Q-Cut |
| Thickness | 0.2672 in |
| UPC 11 | 69826205697 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 7E |
| Corner Radius | 0.006 in |
| Cutting Width | 0.0000 in |
| Insert Size | 25 |
| Insert Style | R151.2 |
| Lead Angle | 5 ° |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Relief Angle | 7 ° |
| Dedicated geometries and grades for all materials |
| V-clamped 1-edged insert for good stability |
| For long overhangs and parting off big components |
| Finishing operation |
| Concave clamping |
| 0 mm cutting width lower tolerance |
| 0.1 mm W cutting upper tolerance |
| 5 deg major right hand cutting edge |
| -0.1 mm corner radius lower tolerance |
| 0.1 mm corner radius upper tolerance |
| E cutting edge condition |
| 5 deg lead |
| 1 edge |
| V or rail clamp with screw mounting |
| Positive rake |
| 0.02 - 0.1 mm/r cutting feed |
| 7 insert mounting style code |
| 25 insert seat size code |
