Sandvik Coromant

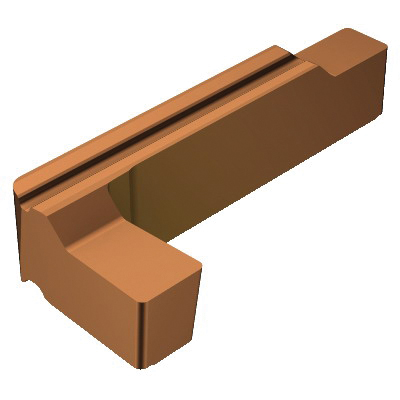

Sandvik Coromant 5741382 CoroCut® 1-2 Grooving Insert, RG123L1-0200-0002-GS1115 ANSI, R/LG123..-GS Insert, 0.0787 in W Cutting
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5741382 CoroCut® 1-2 Grooving Insert, RG123L1-0200-0002-GS1115 ANSI, R/LG123..-GS Insert, 0.0787 in W Cutting
SKU1246438
MFGR #5741382
Your Cost: $73.85/ea
List: Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, R/LG123..-GS Insert, 0.0787 in Cutting Width, 0.2362 in Maximum Depth of Cut, 0 deg Lead Angle, GS Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 0.1712 in Thickness, 1.2165 in Length, Manufacturers Grade: 1115, ANSI Code: RG123L1-0200-0002-GS1115, ISO Code: RG123L1-0200-0002-GS1115, Right Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, R/LG123..-GS Insert, 0.0787 in Cutting Width, 0.2362 in Maximum Depth of Cut, 0 deg Lead Angle, GS Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 0.1712 in Thickness, 1.2165 in Length, Manufacturers Grade: 1115, ANSI Code: RG123L1-0200-0002-GS1115, ISO Code: RG123L1-0200-0002-GS1115, Right Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number RG123L1-0200-0002-GS1115 ANSI Code RG123L1-0200-0002-GS1115 Catalog Number 5741382 Country of Origin SE Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 0.3200 lb ISO Code RG123L1-0200-0002-GS1115 Item Group 320 Length 1.2165 in Material Grade M, P Series CoroCut® 1-2 Thickness 0.1713 in UPC 11 69826248953 Width 0.0787 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker GS Corner Radius 0.008 in Cutting Direction Right Hand Cutting Width 0.0000 in Insert Size L1 Insert Style RG123 Lead Angle 0 ° Manufacturer's Grade 1115 Material Carbide Maximum Depth of Cut 0.2362 in Rake Positive Versatile parting and grooving|Secure and efficient machining 20 life cycle state 90 deg body machine side -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.05 mm corner radius lower tolerance 0.05 mm corner radius upper tolerance Finishing operation 143 mm ID x 147 mm OD minimum axial groove Concave clamping 62 mm minimum bore diameter E cutting edge condition 1-side cutting V or rail clamp mounting style with screw 1 edge 0.05 - 0.15 mm/r cutting feed 7 insert mounting style code LX insert seat size code
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RG123L1-0200-0002-GS1115 |
| ANSI Code | RG123L1-0200-0002-GS1115 |
| Catalog Number | 5741382 |
| Country of Origin | SE |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 0.3200 lb |
| ISO Code | RG123L1-0200-0002-GS1115 |
| Item Group | 320 |
| Length | 1.2165 in |
| Material Grade | M, P |
| Series | CoroCut® 1-2 |
| Thickness | 0.1713 in |
| UPC 11 | 69826248953 |
| Width | 0.0787 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | GS |
| Corner Radius | 0.008 in |
| Cutting Direction | Right Hand |
| Cutting Width | 0.0000 in |
| Insert Size | L1 |
| Insert Style | RG123 |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Maximum Depth of Cut | 0.2362 in |
| Rake | Positive |
| Versatile parting and grooving|Secure and efficient machining |
| 20 life cycle state |
| 90 deg body machine side |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| 143 mm ID x 147 mm OD minimum axial groove |
| Concave clamping |
| 62 mm minimum bore diameter |
| E cutting edge condition |
| 1-side cutting |
| V or rail clamp mounting style with screw |
| 1 edge |
| 0.05 - 0.15 mm/r cutting feed |
| 7 insert mounting style code |
| LX insert seat size code |
