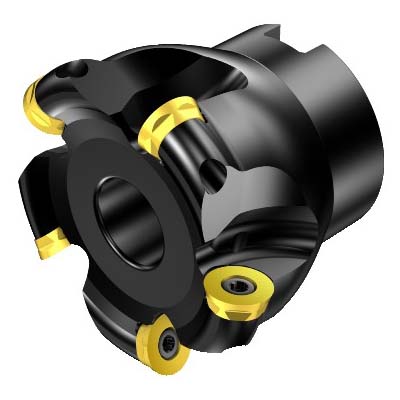

Sandvik Coromant 5739474 CoroMill® 300 Face Milling Cutter, 2.2126 in Cutting, 1 in Shank, 1.9685 in OAL, RA300..Rxx Insert, 0.3937 in Max Depth of Cut
Indexable Face Mills
1254854
MFG #: 5739474
Sandvik Coromant
915.20000
/ ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 2.2126 in Cutting Dia, 1.9685 in Overall Length, 0.3937 in Maximum Depth of Cut, RA300..Rxx Insert, 4 Inserts, Insert Compatibility: R300-2060, 1 in Shank Dia, Right Hand Cutting, ANSI Code: RA300-076R25-20M, ISO Code: RA300-076R25-20M, Steel
- Features
| 6 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 76.2 mm Dia maximum cutting |
| 9.75 mm W keyway |
| 50 mm overhang |
| 7.1 deg maximum ramping |
| 16311 r/min |
| 7.5 Nm torque |
| 20 life cycle state |
| Hexagon socket head cap screw adaptive interface |
