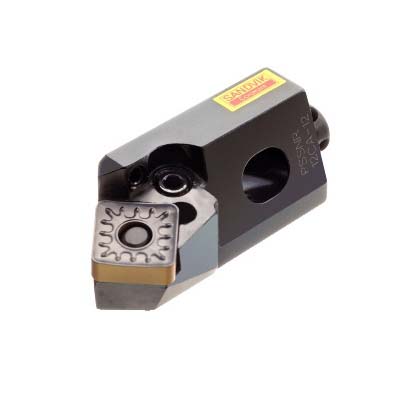

Sandvik Coromant 5739187, SNMG 15 06 12(MIIDM) and SNMG 543(MIIDN) Insert, PSSNR/L..CA Insert, Right Hand
Indexable Turning Cartridges
1237867
MFG #: 5739187
Sandvik Coromant
289.71000
/ ea
Sandvik Coromant Turning Cartridge, PSSNR/L..CA Insert, Insert Compatibility: SNMG 15 06 12(MIIDM) and SNMG 543(MIIDN), Right Hand Cutting, Steel
- Features
| -1 to 1 mm adjustment limit |
| 20 mm W shank |
| Without coolant entry |
| Lever hole clamping interface |
| No coolant exit |
| 9 mm Dia access hole |
| 70 - 90 mm Dia minimum bore |
| 70.3 mm OAL |
| S - Square shape |
| -10 deg orthogonal |
| 30 mm H shank |
| 20 mm H functional |
| 45 deg cutting |
| -3 deg inclination |
| 60 - 70.3 mm L functional |
| 30 mm L head |
| 70.3 mm L protruding |
| 45 deg mounting hole |
| 45 deg mounting hole |
| 30 mm mounting hole distance |
