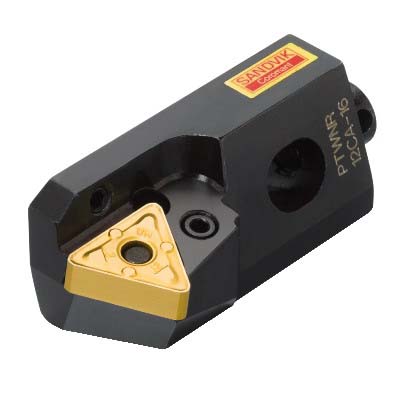

Sandvik Coromant 5738939, TNMG 16 04 08(MIIDM) and TNMG 332(MIIDN) Insert, PTWNR/L..CA Insert, Left Hand
Indexable Turning Cartridges
1236440
MFG #: 5738939
Sandvik Coromant
237.60000
/ ea
Sandvik Coromant Turning Cartridge, PTWNR/L..CA Insert, Insert Compatibility: TNMG 16 04 08(MIIDM) and TNMG 332(MIIDN), Left Hand Cutting, Steel
- Features
| -1 to 1 mm adjustment limit |
| 15 mm W shank |
| Without coolant entry |
| Lever hole clamping interface |
| No coolant exit |
| 7 mm Dia access hole |
| 50 mm Dia minimum bore |
| 54.2 mm OAL |
| T - Triangle shape |
| -6 deg orthogonal |
| 20 mm H shank |
| 12 mm H functional |
| 60 deg cutting edge |
| -7 deg inclination |
| 47 - 54.2 mm L functional |
| 27 mm L head |
| 54.2 mm L protruding |
| 20 deg mounting hole |
| 20 deg mounting hole |
| 20 mm mounting hole distance |
