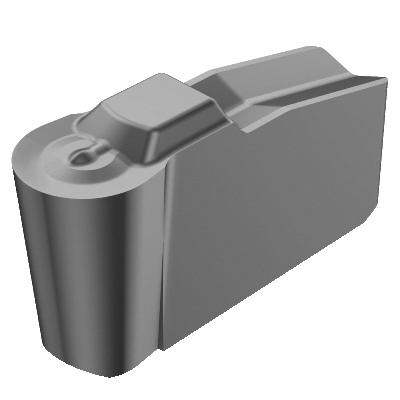

Sandvik Coromant 5738344 T-Max® Q-Cut, N151.2-450-40-4P H13A, N151.2-4P Insert, Carbide, 0.0787 in Max Depth of Cut, K/M/N/S
N151 Profiling Inserts
1249591
MFG #: 5738344
Sandvik Coromant
18.65000
/ ea
Sandvik Coromant Profiling Insert, Series: T-Max® Q-Cut, N151.2-4P Insert, 0.0787 in Maximum Depth of Cut, 0.3191 in Thickness, 0.2677 in Length, 4P Chipbreaker, ANSI Code: N151.2-450-40-4P H13A, 0.0885 in Corner Radius, Manufacturer's Grade: H13A, Neutral Hand, Carbide, Uncoated, Material Grade: K/M/N/S
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 4.5 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.02 mm corner radius lower tolerance |
| 0.02 mm corner radius upper tolerance |
| 90 deg ramping |
| 1 edge |
| 0 deg lead |
| 0.1 - 0.19 mm/r cutting feed |
| 7 insert mounting style code |
| 40 insert seat size |
| ANSI Code: N151.2-450-40-4P H13A |
| ISO Code: N151.2-450-40-4P H13A |
