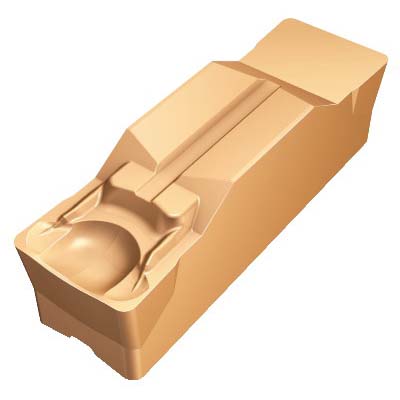

Sandvik Coromant 5736690 CoroCut® 1-2 Grooving Insert, N123M1-0953-0008-GM 1125, N123x1-GM Insert, 3/8 in W Cutting, 1125, N123M1-0953-0008-GM 1125
N123 Grooving Inserts
1248001
MFG #: 5736690
Sandvik Coromant
37.84000
/ ea
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x1-GM Insert, 3/8 in Cutting Width, 0 deg Lead Angle, GM Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 0.2775 in Thickness, Manufacturers Grade: 1125, ANSI Code: N123M1-0953-0008-GM 1125, ISO Code: N123M1-0953-0008-GM 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P
- Features
Versatile parting and grooving|Secure and efficient machining |
20 life cycle state |
0 deg body machine side |
-0.03 mm W cutting lower tolerance |
0.03 mm W cutting upper tolerance |
-0.05 mm corner radius lower tolerance |
0.05 mm corner radius upper tolerance |
Medium operation |
Concave clamping |
E cutting edge condition |
1-side cutting |
V or rail clamp mounting style with screw |
1 edge |
0.1 - 0.4 mm/r cutting feed |
7 insert mounting style code |
M insert seat size code |
