Sandvik Coromant

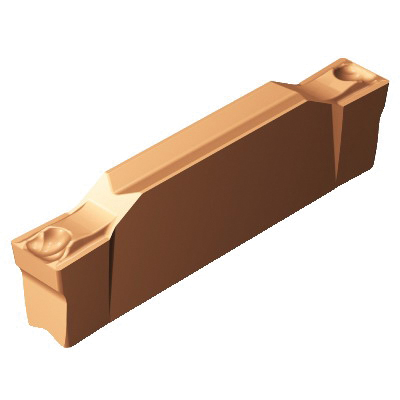

Sandvik Coromant 5736670 CoroCut® 1-2 Grooving Insert, N123K2-0600-0002-GF 1125 ANSI, N123x2-GF Insert, 0.2362 in W Cutting
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5736670 CoroCut® 1-2 Grooving Insert, N123K2-0600-0002-GF 1125 ANSI, N123x2-GF Insert, 0.2362 in W Cutting
SKU623760
MFGR #5736670
Your Cost: $58.26/ea
List: Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.2362 in Cutting Width, 0.9606 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 0.1712 in Thickness, Manufacturers Grade: 1125, ANSI Code: N123K2-0600-0002-GF 1125, ISO Code: N123K2-0600-0002-GF 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.2362 in Cutting Width, 0.9606 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0078 in Corner Radius, Positive Rake, 0.1712 in Thickness, Manufacturers Grade: 1125, ANSI Code: N123K2-0600-0002-GF 1125, ISO Code: N123K2-0600-0002-GF 1125, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
Alternate Catalog Number N123K2-0600-0002-GF 1125 ANSI Code N123K2-0600-0002-GF 1125 Catalog Number 5736670 Country of Origin JP Finish PVD-TiAlN Coated Gross Weight Per Pack 0.3000 lb ISO Code N123K2-0600-0002-GF 1125 Item Group 320 Length 0.9862 in Material Grade K, M, N, P, S Series CoroCut® 1-2 Thickness 0.1713 in Type Low Feed UPC 11 69826239833 UPC 12 69826239833 Width 0.236 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker GF Corner Radius 0.008 in Cutting Direction Neutral Cutting Width 0.0000 in Insert Size K2 Insert Style N123 Lead Angle 0 ° Manufacturer's Grade 1125 Material Carbide Maximum Depth of Cut 0.961 in Rake Positive Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges 20 life cycle state 0 deg body machine side -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.05 mm corner radius lower tolerance 0.05 mm corner radius upper tolerance Finishing operation 25.05 mm L interfering edge Concave clamping 0 deg maximum ramping E cutting edge condition 1-side cutting V or rail clamp mounting style with screw 2 edges 0.08 - 0.24 mm/r cutting feed 7 insert mounting style code K insert seat size code
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123K2-0600-0002-GF 1125 |
| ANSI Code | N123K2-0600-0002-GF 1125 |
| Catalog Number | 5736670 |
| Country of Origin | JP |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.3000 lb |
| ISO Code | N123K2-0600-0002-GF 1125 |
| Item Group | 320 |
| Length | 0.9862 in |
| Material Grade | K, M, N, P, S |
| Series | CoroCut® 1-2 |
| Thickness | 0.1713 in |
| Type | Low Feed |
| UPC 11 | 69826239833 |
| UPC 12 | 69826239833 |
| Width | 0.236 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | GF |
| Corner Radius | 0.008 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 in |
| Insert Size | K2 |
| Insert Style | N123 |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Maximum Depth of Cut | 0.961 in |
| Rake | Positive |
| Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges |
| 20 life cycle state |
| 0 deg body machine side |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| 25.05 mm L interfering edge |
| Concave clamping |
| 0 deg maximum ramping |
| E cutting edge condition |
| 1-side cutting |
| V or rail clamp mounting style with screw |
| 2 edges |
| 0.08 - 0.24 mm/r cutting feed |
| 7 insert mounting style code |
| K insert seat size code |
