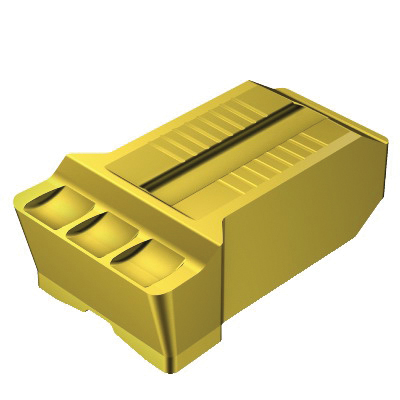

Sandvik Coromant 5736563 CoroCut® 1-2 Grooving Insert, N123R1-1500-0010-GR 2135 ANSI, N123x1-GR Insert, 0.5905 in W Cutting
N123 Grooving Inserts
1247976
MFG #: 5736563
Sandvik Coromant
39.38000
/ ea
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x1-GR Insert, 0.5905 in Cutting Width, 0 deg Lead Angle, GR Chipbreaker, 0.0472 in Corner Radius, Positive Rake, 0.2948 in Thickness, Manufacturers Grade: 2135, ANSI Code: N123R1-1500-0010-GR 2135, ISO Code: N123R1-1500-0010-GR 2135, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
- Features
| Versatile parting and grooving|Secure and efficient machining |
| 20 life cycle state |
| 0 deg body machine side |
| -0.08 mm W cutting lower tolerance |
| 0.08 mm W cutting upper tolerance |
| -0.1 mm corner radius lower tolerance |
| 0.1 mm corner radius upper tolerance |
| Pre-machining operation |
| 25.4 mm L interfering edge |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| V or rail clamp mounting style with screw |
| 1 edge |
| 0.2 - 0.56 mm/r cutting feed |
| 7 insert mounting style code |
| R insert seat size code |
