Sandvik Coromant

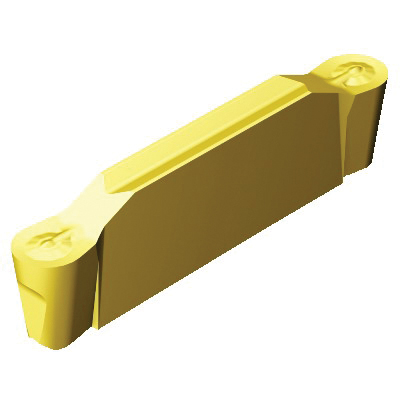

Sandvik Coromant 5736474 CoroCut® 1-2, N123E2-0239-RO 1005, N123x2-RO Insert, Carbide, 0.0393 in Max Depth of Cut, M/S
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5736474 CoroCut® 1-2, N123E2-0239-RO 1005, N123x2-RO Insert, Carbide, 0.0393 in Max Depth of Cut, M/S
SKU1247534
MFGR #5736474
Your Cost: $37.13/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-RO Insert, 0.0393 in Maximum Depth of Cut, 0.1692 in Thickness, RO Chipbreaker, ANSI Code: N123E2-0239-RO 1005, 0.0470 in Corner Radius, Manufacturer's Grade: 1005, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-RO Insert, 0.0393 in Maximum Depth of Cut, 0.1692 in Thickness, RO Chipbreaker, ANSI Code: N123E2-0239-RO 1005, 0.0470 in Corner Radius, Manufacturer's Grade: 1005, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number N123E2-0239-RO 1005 ANSI Code N123E2-0239-RO 1005 Catalog Number 5736474 Corner Radius 0.047 in Country of Origin US Finish PVD-TiAlN+TiN Coated Gross Weight Per Pack 0.1000 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.0393 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.1692 in UPC 11 69826217578 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RO Insert Size 0396 Insert Style N123x2-RO Manufacturer's Grade 1005 Material Carbide Material Grade M, S Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 2.39 mm W cutting E cutting edge condition Finishing operation Concave clamping -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.01 mm corner radius lower tolerance 0.01 mm corner radius upper tolerance 90 deg ramping 0 deg lead 0.07 - 0.13 mm/r cutting feed 7 insert mounting style code E insert seat size ANSI Code: N123E2-0239-RO 1005 ISO Code: N123E2-0239-RO 1005
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N123E2-0239-RO 1005 |
| ANSI Code | N123E2-0239-RO 1005 |
| Catalog Number | 5736474 |
| Corner Radius | 0.047 in |
| Country of Origin | US |
| Finish | PVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 0.1000 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.0393 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.1692 in |
| UPC 11 | 69826217578 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RO |
| Insert Size | 0396 |
| Insert Style | N123x2-RO |
| Manufacturer's Grade | 1005 |
| Material | Carbide |
| Material Grade | M, S |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 2.39 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.01 mm corner radius lower tolerance |
| 0.01 mm corner radius upper tolerance |
| 90 deg ramping |
| 0 deg lead |
| 0.07 - 0.13 mm/r cutting feed |
| 7 insert mounting style code |
| E insert seat size |
| ANSI Code: N123E2-0239-RO 1005 |
| ISO Code: N123E2-0239-RO 1005 |
