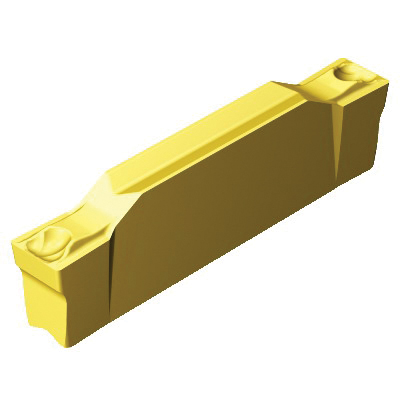

Sandvik Coromant 5736412 CoroCut® 1-2 Grooving Insert, N123H2-0396-0002-GF 1005, N123x2-GF Insert, 0.1559 in W Cutting, 1005, N123H2-0396-0002-GF 1005
Custom_Product_Images_Illustration
Sandvik Coromant 5736412 CoroCut® 1-2 Grooving Insert, N123H2-0396-0002-GF 1005, N123x2-GF Insert, 0.1559 in W Cutting, 1005, N123H2-0396-0002-GF 1005
SKU1247670
MFGR #5736412
Your Cost: $52.41/ea
List: Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.1559 in Cutting Width, 0.9606 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0078 in Corner Radius, 0.1712 in Thickness, Manufacturers Grade: 1005, ANSI Code: N123H2-0396-0002-GF 1005, ISO Code: N123H2-0396-0002-GF 1005, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.1559 in Cutting Width, 0.9606 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0078 in Corner Radius, 0.1712 in Thickness, Manufacturers Grade: 1005, ANSI Code: N123H2-0396-0002-GF 1005, ISO Code: N123H2-0396-0002-GF 1005, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number N123H2-0396-0002-GF 1005 ANSI Code N123H2-0396-0002-GF 1005 Catalog Number 5736412 Country of Origin US Finish PVD-TiAlN+TiN Coated Gross Weight Per Pack 0.1900 lb ISO Code N123H2-0396-0002-GF 1005 Item Group 320 Material Grade M, N, S Series CoroCut® 1-2 Thickness 0.1713 in Type Low Feed UPC 11 69826217625 Width 0.156 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker GF Corner Radius 0.008 in Cutting Direction Neutral Cutting Width 0.0000 in Insert Size H2 Insert Style N123 Lead Angle 0 ° Manufacturer's Grade 1005 Material Carbide Maximum Depth of Cut 0.961 in Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges 20 life cycle state 0 deg body machine side -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.05 mm corner radius lower tolerance 0.05 mm corner radius upper tolerance Finishing operation 25.05 mm L interfering edge Concave clamping 0 deg maximum ramping E cutting edge condition 1-side cutting 7 insert mounting style code H insert seat size code
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123H2-0396-0002-GF 1005 |
| ANSI Code | N123H2-0396-0002-GF 1005 |
| Catalog Number | 5736412 |
| Country of Origin | US |
| Finish | PVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 0.1900 lb |
| ISO Code | N123H2-0396-0002-GF 1005 |
| Item Group | 320 |
| Material Grade | M, N, S |
| Series | CoroCut® 1-2 |
| Thickness | 0.1713 in |
| Type | Low Feed |
| UPC 11 | 69826217625 |
| Width | 0.156 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | GF |
| Corner Radius | 0.008 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 in |
| Insert Size | H2 |
| Insert Style | N123 |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 1005 |
| Material | Carbide |
| Maximum Depth of Cut | 0.961 in |
| Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges |
| 20 life cycle state |
| 0 deg body machine side |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| 25.05 mm L interfering edge |
| Concave clamping |
| 0 deg maximum ramping |
| E cutting edge condition |
| 1-side cutting |
| 7 insert mounting style code |
| H insert seat size code |
