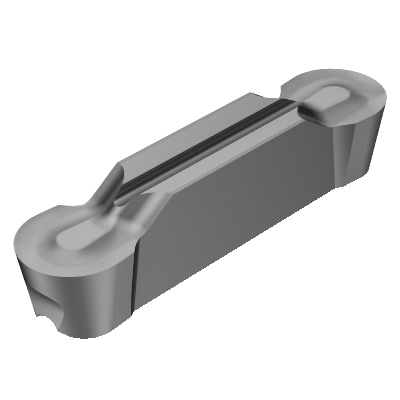

Sandvik Coromant 5736386 CoroCut® 1-2, N123L2-0800-AM H10, N123x2-AM Insert, Carbide, 0.1496 in Max Depth of Cut, N
Custom_Product_Images_Illustration
Sandvik Coromant 5736386 CoroCut® 1-2, N123L2-0800-AM H10, N123x2-AM Insert, Carbide, 0.1496 in Max Depth of Cut, N
SKU1247939
MFGR #5736386
Your Cost: $63.41/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-AM Insert, 0.1496 in Maximum Depth of Cut, 0.2381 in Thickness, AM Chipbreaker, ANSI Code: N123L2-0800-AM H10, 0.1574 in Corner Radius, Manufacturer's Grade: H10, Positive Rake, Neutral Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-AM Insert, 0.1496 in Maximum Depth of Cut, 0.2381 in Thickness, AM Chipbreaker, ANSI Code: N123L2-0800-AM H10, 0.1574 in Corner Radius, Manufacturer's Grade: H10, Positive Rake, Neutral Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number N123L2-0800-AM H10 ANSI Code N123L2-0800-AM H10 Catalog Number 5736386 Corner Radius 0.1574 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.5000 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.1496 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.2381 in UPC 11 69826216884 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker AM Insert Size L2 Insert Style N123x2-AM Manufacturer's Grade H10 Material Carbide Material Grade N Rake Positive Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 8 mm w cutting E cutting edge condition Medium operation Concave clamping -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.02 mm corner radius lower tolerance 0.02 mm corner radius upper tolerance 90 deg ramping 2 edges 0 deg lead V or rail clamp with screw mounting 0.16 - 0.24 mm/r cutting feed 7 insert mounting style code L insert seat size ANSI Code: N123L2-0800-AM H10 ISO Code: N123L2-0800-AM H10
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123L2-0800-AM H10 |
| ANSI Code | N123L2-0800-AM H10 |
| Catalog Number | 5736386 |
| Corner Radius | 0.1574 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.5000 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.1496 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.2381 in |
| UPC 11 | 69826216884 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | AM |
| Insert Size | L2 |
| Insert Style | N123x2-AM |
| Manufacturer's Grade | H10 |
| Material | Carbide |
| Material Grade | N |
| Rake | Positive |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 8 mm w cutting |
| E cutting edge condition |
| Medium operation |
| Concave clamping |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.02 mm corner radius lower tolerance |
| 0.02 mm corner radius upper tolerance |
| 90 deg ramping |
| 2 edges |
| 0 deg lead |
| V or rail clamp with screw mounting |
| 0.16 - 0.24 mm/r cutting feed |
| 7 insert mounting style code |
| L insert seat size |
| ANSI Code: N123L2-0800-AM H10 |
| ISO Code: N123L2-0800-AM H10 |
