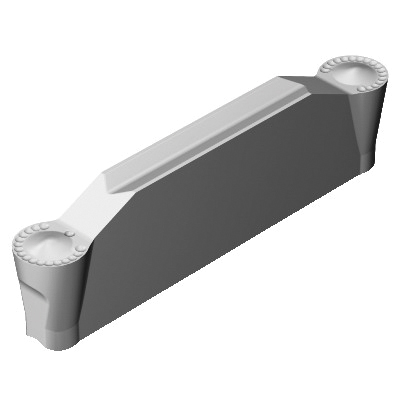

Sandvik Coromant 5736328 CoroCut® 1-2, N123J2-0600-RM H13A, N123x2-RM Insert, Carbide, 0.1102 in Max Depth of Cut, N
Custom_Product_Images_Illustration
Sandvik Coromant 5736328 CoroCut® 1-2, N123J2-0600-RM H13A, N123x2-RM Insert, Carbide, 0.1102 in Max Depth of Cut, N
SKU648158
MFGR #5736328
Your Cost: $33.90/ea
List: Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-RM Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RM Chipbreaker, ANSI Code: N123J2-0600-RM H13A, 0.1181 in Corner Radius, Manufacturer's Grade: H13A, Neutral Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Profiling Insert, Series: CoroCut® 1-2, N123x2-RM Insert, 0.1102 in Maximum Depth of Cut, 0.1712 in Thickness, RM Chipbreaker, ANSI Code: N123J2-0600-RM H13A, 0.1181 in Corner Radius, Manufacturer's Grade: H13A, Neutral Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number N123J2-0600-RM H13A ANSI Code N123J2-0600-RM H13A Catalog Number 5736328 Corner Radius 0.1181 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.2300 lb Hand of Insert Neutral Item Group 320 Maximum Depth of Cut 0.1102 in Relief Angle 7 ° Series CoroCut® 1-2 Thickness 0.1712 in UPC 11 69826204253 UPC 12 69826204253 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker RM Insert Size 0600 Insert Style N123x2-RM Manufacturer's Grade H13A Material Carbide Material Grade K, M, N Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining 6 mm w cutting E cutting edge condition Medium operation Concave clamping 0 mm W cutting lower tolerance 0.1 mm W cutting upper tolerance -0.10 mm corner radius lower tolerance 0.10 mm corner radius upper tolerance 90 deg ramping 0 deg lead 0.15 - 0.28 mm/r cutting feed 7 insert mounting style code J insert seat size ANSI Code: N123J2-0600-RM H13A ISO Code: N123J2-0600-RM H13A
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123J2-0600-RM H13A |
| ANSI Code | N123J2-0600-RM H13A |
| Catalog Number | 5736328 |
| Corner Radius | 0.1181 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.2300 lb |
| Hand of Insert | Neutral |
| Item Group | 320 |
| Maximum Depth of Cut | 0.1102 in |
| Relief Angle | 7 ° |
| Series | CoroCut® 1-2 |
| Thickness | 0.1712 in |
| UPC 11 | 69826204253 |
| UPC 12 | 69826204253 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | RM |
| Insert Size | 0600 |
| Insert Style | N123x2-RM |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | K, M, N |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| 6 mm w cutting |
| E cutting edge condition |
| Medium operation |
| Concave clamping |
| 0 mm W cutting lower tolerance |
| 0.1 mm W cutting upper tolerance |
| -0.10 mm corner radius lower tolerance |
| 0.10 mm corner radius upper tolerance |
| 90 deg ramping |
| 0 deg lead |
| 0.15 - 0.28 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size |
| ANSI Code: N123J2-0600-RM H13A |
| ISO Code: N123J2-0600-RM H13A |
