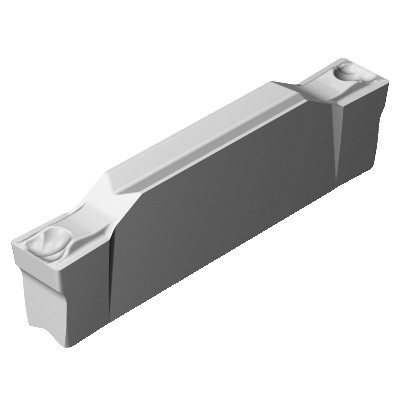

Sandvik Coromant 5735666 CoroCut® 1-2 Grooving Insert, N123E2-0185-0001-GF H13A ANSI, N123x2-GF (CIRCLIP) Insert, H13A
N123 Grooving Inserts
1247535
MFG #: 5735666
Sandvik Coromant
28.07000
/ ea
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF (CIRCLIP) Insert, 0.0728 in Cutting Width, 0.7598 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0039 in Corner Radius, Positive Rake, 0.1712 in Thickness, Manufacturers Grade: H13A, ANSI Code: N123E2-0185-0001-GF H13A, ISO Code: N123E2-0185-0001-GF H13A, Neutral Hand, Carbide, Uncoated, Material Grade: N
- Features
| Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges |
| 20 life cycle state |
| 0 deg body machine side |
| 0.09 mm W cutting lower tolerance |
| 0.13 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| 20.05 mm L interfering edge |
| Concave clamping |
| 0 deg maximum ramping |
| E cutting edge condition |
| 1-side cutting |
| V or rail clamp mounting style with screw |
| 2 edges |
| 0.04 - 0.16 mm/r cutting feed |
| 7 insert mounting style code |
| E insert seat size code |
