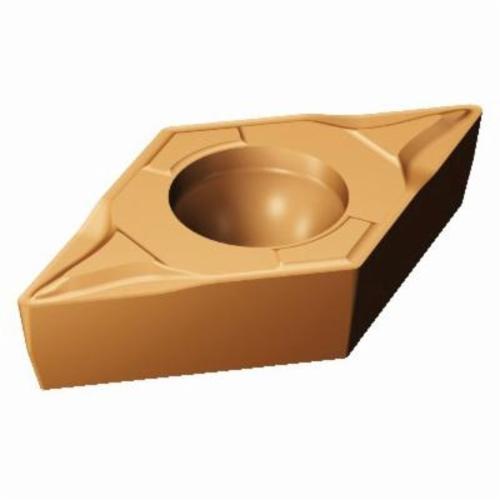

Sandvik Coromant 5734917 CoroTurn® 111 Turning Insert, DPMT 2(1.5)0-MF 1125, D-55 deg Diamond, DPMT Insert, 1125
Custom_Product_Images_Illustration
Sandvik Coromant 5734917 CoroTurn® 111 Turning Insert, DPMT 2(1.5)0-MF 1125, D-55 deg Diamond, DPMT Insert, 1125
SKU1235621
MFGR #5734917
Your Cost: $14.80/ea
List: Sandvik Coromant Turning Insert, Series: CoroTurn® 111, DPMT Insert, D-55 deg Diamond, 1.3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.3051 in Length, MF Chipbreaker, 0.0078 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: DPMT 2(1.5)0-MF 1125, ISO Code: DPMT 07 02 02-MF 1125, 55 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Series: CoroTurn® 111, DPMT Insert, D-55 deg Diamond, 1.3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.3051 in Length, MF Chipbreaker, 0.0078 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: DPMT 2(1.5)0-MF 1125, ISO Code: DPMT 07 02 02-MF 1125, 55 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number DPMT 2(1.5)0-MF 1125 ANSI Code DPMT 2(1.5)0-MF 1125 Catalog Number 5734917 Corner Radius 0.0078 in Country of Origin SE Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 5.0900 lb Hole Diameter 0.1102 in Included Angle 55 ° ISO Code DPMT 07 02 02-MF 1125 Item Group 120 Relief Angle 11 ° Series CoroTurn® 111 Thickness 0.0937 in UPC 11 69826243774 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Stainless Steel, Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/4 in Insert Size 2(1.5)0 Insert Style DPMT Manufacturer's Grade 1125 Material Carbide Material Grade M, P, S Maximum Depth of Cut 0.067 in Rake Positive Seat Size 7 Shape Rhombic Medium machining of long chipping steel materials Low cutting forces due to curved cutting edge Machining forged parts with low material removal Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DPMT 2(1.5)0-MF 1125 |
| ANSI Code | DPMT 2(1.5)0-MF 1125 |
| Catalog Number | 5734917 |
| Corner Radius | 0.0078 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 5.0900 lb |
| Hole Diameter | 0.1102 in |
| Included Angle | 55 ° |
| ISO Code | DPMT 07 02 02-MF 1125 |
| Item Group | 120 |
| Relief Angle | 11 ° |
| Series | CoroTurn® 111 |
| Thickness | 0.0937 in |
| UPC 11 | 69826243774 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/4 in |
| Insert Size | 2(1.5)0 |
| Insert Style | DPMT |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | M, P, S |
| Maximum Depth of Cut | 0.067 in |
| Rake | Positive |
| Seat Size | 7 |
| Shape | Rhombic |
| Medium machining of long chipping steel materials |
| Low cutting forces due to curved cutting edge |
| Machining forged parts with low material removal |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
