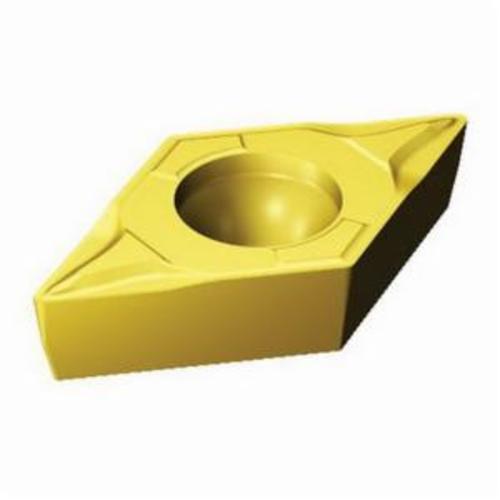

Sandvik Coromant 5734916 CoroTurn® 111 1-Sided Turning Insert, DPMT 2(1.5)0-MF 1025, D-55 deg Diamond, DPMT-MF Insert, 1025
Custom_Product_Images_Illustration
Sandvik Coromant 5734916 CoroTurn® 111 1-Sided Turning Insert, DPMT 2(1.5)0-MF 1025, D-55 deg Diamond, DPMT-MF Insert, 1025
SKU288791
MFGR #5734916
Your Cost: $11.78/ea
List: CoroTurn® 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.
CoroTurn® 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.
ANSI Code DPMT 2(1.5)0-MF 1025 Catalog Number 5734916 Corner Radius 0.0078 in Country of Origin SE Finish PVD-TiAlN+TiN Coated Gross Weight Per Pack 5.0900 lb Hole Diameter 0.1102 in Included Angle 55 ° ISO Code DPMT 07 02 02-MF 1025 Relief Angle 11 ° Series CoroTurn® 111 Thickness 0.0937 in UPC 11 69826211955 UPC 12 69826211955 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Stainless Steel, Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/4 in Insert Size 2(1.5)0 Insert Style DPMT Manufacturer's Grade 1025 Material Carbide Material Grade M, P, S Maximum Depth of Cut 0.067 in Rake Positive Seat Size 7 Shape Rhombic Medium machining of long chipping steel materials Low cutting forces due to curved cutting edge Machining forged parts with low material removal Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance Low cutting forces Excellent edge strength Screw clamping ensures stability and unobstructed chip flow Steel, stainless steel, cast iron, heat resistant super alloys, titanium, hardened materials, aluminum and non-ferrous materials are applicable materials
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | DPMT 2(1.5)0-MF 1025 |
| Catalog Number | 5734916 |
| Corner Radius | 0.0078 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 5.0900 lb |
| Hole Diameter | 0.1102 in |
| Included Angle | 55 ° |
| ISO Code | DPMT 07 02 02-MF 1025 |
| Relief Angle | 11 ° |
| Series | CoroTurn® 111 |
| Thickness | 0.0937 in |
| UPC 11 | 69826211955 |
| UPC 12 | 69826211955 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/4 in |
| Insert Size | 2(1.5)0 |
| Insert Style | DPMT |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | M, P, S |
| Maximum Depth of Cut | 0.067 in |
| Rake | Positive |
| Seat Size | 7 |
| Shape | Rhombic |
| Medium machining of long chipping steel materials |
| Low cutting forces due to curved cutting edge |
| Machining forged parts with low material removal |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Steel, stainless steel, cast iron, heat resistant super alloys, titanium, hardened materials, aluminum and non-ferrous materials are applicable materials |
