Sandvik Coromant

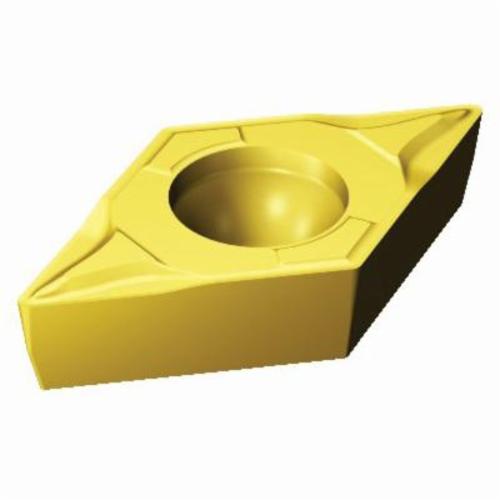

Sandvik Coromant 5734907 CoroTurn® 111 Turning Insert, DPMT 2(1.5)1-MF 2015, D-55 deg Diamond, DPMT Insert, 2015, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5734907 CoroTurn® 111 Turning Insert, DPMT 2(1.5)1-MF 2015, D-55 deg Diamond, DPMT Insert, 2015, Carbide
SKU1235543
MFGR #5734907
Your Cost: $12.25/ea
List: Sandvik Coromant Turning Insert, Series: CoroTurn® 111, DPMT Insert, D-55 deg Diamond, 1.3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.3051 in Length, MF Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: DPMT 2(1.5)1-MF 2015, ISO Code: DPMT 07 02 04-MF 2015, 55 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Series: CoroTurn® 111, DPMT Insert, D-55 deg Diamond, 1.3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 0.3051 in Length, MF Chipbreaker, 0.0156 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 2015, ANSI Code: DPMT 2(1.5)1-MF 2015, ISO Code: DPMT 07 02 04-MF 2015, 55 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number DPMT 2(1.5)1-MF 2015 ANSI Code DPMT 2(1.5)1-MF 2015 Catalog Number 5734907 Corner Radius 0.0156 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 5.0900 lb Hole Diameter 0.1102 in Included Angle 55 ° ISO Code DPMT 07 02 04-MF 2015 Item Group 120 Relief Angle 11 ° Series CoroTurn® 111 Thickness 0.0937 in UPC 11 69826211959 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/4 in Insert Size 2(1.5)1 Insert Style DPMT Manufacturer's Grade 2015 Material Carbide Material Grade M Maximum Depth of Cut 0.067 in Rake Positive Seat Size 7 Shape Rhombic Medium machining of long chipping steel materials Low cutting forces due to curved cutting edge Machining forged parts with low material removal Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DPMT 2(1.5)1-MF 2015 |
| ANSI Code | DPMT 2(1.5)1-MF 2015 |
| Catalog Number | 5734907 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 5.0900 lb |
| Hole Diameter | 0.1102 in |
| Included Angle | 55 ° |
| ISO Code | DPMT 07 02 04-MF 2015 |
| Item Group | 120 |
| Relief Angle | 11 ° |
| Series | CoroTurn® 111 |
| Thickness | 0.0937 in |
| UPC 11 | 69826211959 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/4 in |
| Insert Size | 2(1.5)1 |
| Insert Style | DPMT |
| Manufacturer's Grade | 2015 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.067 in |
| Rake | Positive |
| Seat Size | 7 |
| Shape | Rhombic |
| Medium machining of long chipping steel materials |
| Low cutting forces due to curved cutting edge |
| Machining forged parts with low material removal |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
