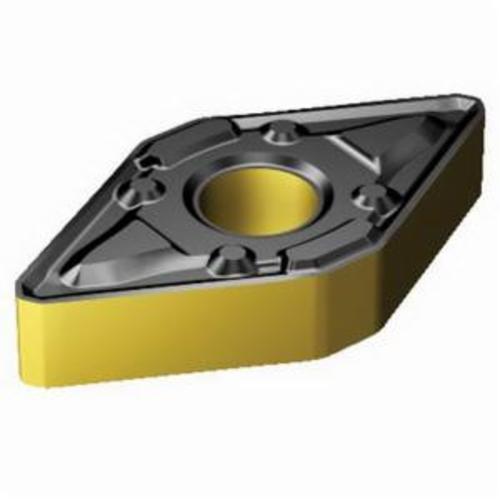

Sandvik Coromant 5733807 T-Max® P 2-Sided Turning Insert, DNMX 444-WM 3215, D-55 deg Diamond, DNMX-WM Insert, 3215
Custom_Product_Images_Illustration
Sandvik Coromant 5733807 T-Max® P 2-Sided Turning Insert, DNMX 444-WM 3215, D-55 deg Diamond, DNMX-WM Insert, 3215
SKU1235572
MFGR #5733807
Your Cost: $24.42/ea
List: T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
ANSI Code DNMX 444-WM 3215 Catalog Number 5733807 Corner Radius 0.0624 in Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.0400 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMX 15 06 16-WM 3215 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826225507 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WM Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 444 Insert Style DNMX Manufacturer's Grade 3215 Material Carbide Material Grade K Maximum Depth of Cut 0.236 in Rake Negative Seat Size 15 Shape Rhombic Universal geometry for cast iron workpieces Machining higher strength steels Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance 40 life cycle state Negative basic shape inserts for high-performance turning Double sided inserts with strong edges Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility Precision nozzles and optimized geometries for high precision coolant machining Dedicated grades and geometries for all applications and materials Productive solution with wiper and Xcel technologies Tools featuring high precision coolant for excellent chip breaking Reliable and secure machining, even in roughing applications Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling Negative rake
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMX 444-WM 3215 |
| Catalog Number | 5733807 |
| Corner Radius | 0.0624 in |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMX 15 06 16-WM 3215 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826225507 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 444 |
| Insert Style | DNMX |
| Manufacturer's Grade | 3215 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Universal geometry for cast iron workpieces |
| Machining higher strength steels |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| 40 life cycle state |
| Negative basic shape inserts for high-performance turning |
| Double sided inserts with strong edges |
| Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility |
| Precision nozzles and optimized geometries for high precision coolant machining |
| Dedicated grades and geometries for all applications and materials |
| Productive solution with wiper and Xcel technologies |
| Tools featuring high precision coolant for excellent chip breaking |
| Reliable and secure machining, even in roughing applications |
| Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling |
| Negative rake |
