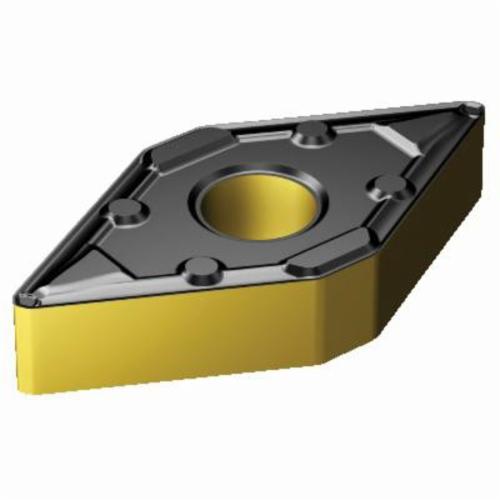

Sandvik Coromant 5733137 T-Max® P Negative Basic Shape Turning Insert, DNMX 332-WF 3215, D-55 deg Diamond, DNMX Insert, 3215
Custom_Product_Images_Illustration
Sandvik Coromant 5733137 T-Max® P Negative Basic Shape Turning Insert, DNMX 332-WF 3215, D-55 deg Diamond, DNMX Insert, 3215
SKU1235141
MFGR #5733137
Your Cost: $19.84/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMX Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, WF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: DNMX 332-WF 3215, ISO Code: DNMX 11 04 08-WF 3215, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMX Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, WF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 3215, ANSI Code: DNMX 332-WF 3215, ISO Code: DNMX 11 04 08-WF 3215, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
ANSI Code DNMX 332-WF 3215 Catalog Number 5733137 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1800 lb Hole Diameter 0.15 in Included Angle 55 ° ISO Code DNMX 11 04 08-WF 3215 Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826226298 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WF Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 3/8 in Insert Size 332 Insert Style DNMX Manufacturer's Grade 3215 Material Carbide Material Grade K Maximum Depth of Cut 0.098 in Rake Negative Seat Size 11 Shape Rhombic Finishing steel materials Can also be used in semi-finishing as an alternative to MP3 Curved cutting edge for low cutting forces Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance Undisturbed production Less need for supervision 0.1 - 0.4 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMX 332-WF 3215 |
| Catalog Number | 5733137 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1800 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 55 ° |
| ISO Code | DNMX 11 04 08-WF 3215 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826226298 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 3/8 in |
| Insert Size | 332 |
| Insert Style | DNMX |
| Manufacturer's Grade | 3215 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.098 in |
| Rake | Negative |
| Seat Size | 11 |
| Shape | Rhombic |
| Finishing steel materials |
| Can also be used in semi-finishing as an alternative to MP3 |
| Curved cutting edge for low cutting forces |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
| Undisturbed production |
| Less need for supervision |
| 0.1 - 0.4 mm/r cutting feed |
| 20 life cycle state |
