| Bolt and segment clamping machine side adaptive interface |
| 20 life cycle state |
| -15 deg axial clearance |
| 0 deg body workpiece side |
| 40 mm Dia steel body |
| Axial concentric and radial entry |
| 10 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Axial inclined exit |
| 63 mm Dia connection50 mm Dia minimum bore |
| -15 deg rake orthogonal |
| -1 deg inclination |
| 80 mm L usable |
| 266.RL-16.. compatible insert |
| 143 mm OAL |
| T - Triangle insert shape |
| 3/8 in insert seat |
| 1 deg thread helix correction |
| 3 Nm torque |

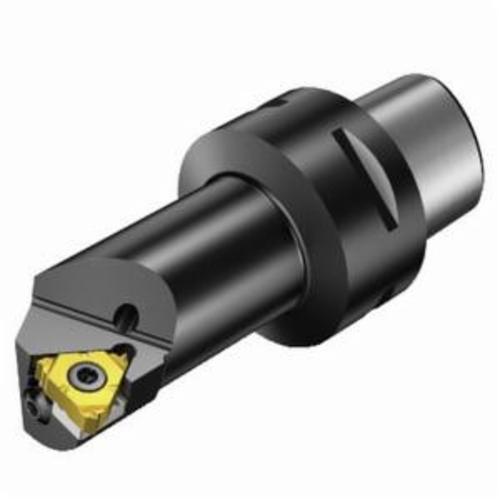

| Cx-266R/LKF tool style |
