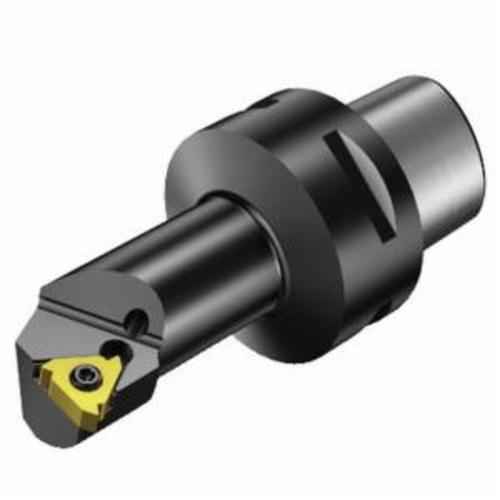

| Bolt and segment clamping machine side adaptive interface |
| 20 life cycle state |
| -15 deg axial clearance |
| 0 deg body workpiece side |
| 16 mm Dia steel body |
| Axial concentric and radial entry |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| Axial inclined exit |
| 40 mm Dia connection20 mm Dia minimum bore |
| -15 deg rake orthogonal |
| -1 deg inclination |
| 37 mm L usable |
| L166.0L-11.. compatible insert |
| 84 mm OAL |
| T - Triangle insert shape |
| 1/4 in insert seat |
| 1 deg thread helix correction |
| 0.9 Nm torque |
| Cx-R/L166.0KF tool style |
