| Excellent surface finish due to wiper technology|Proven, versatile system|Large variety of widths|Dedicated geometries and grades for all materials|V-clamped 1-edged insert for good stability |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Axial inclined coolant exit with nozzle, adjustable |
| 32 mm Dia connection |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 55 mm length to cutting item reference point |
| 74 mm OAL |
| 55 mm overhang |
| 3.5 Nm torque |

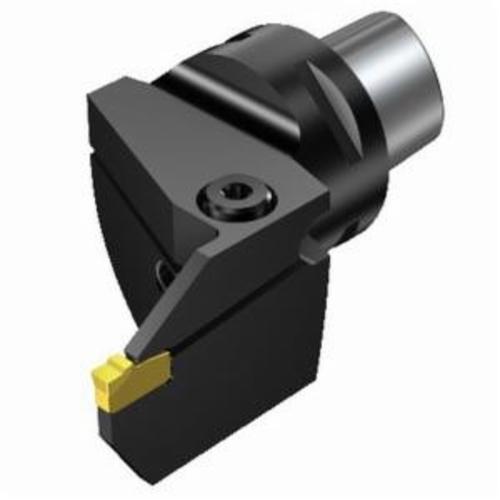

| ANSI Code: C3-LF151.23-22055-30 |
| ISO Code: C3-LF151.23-22055-30 |
