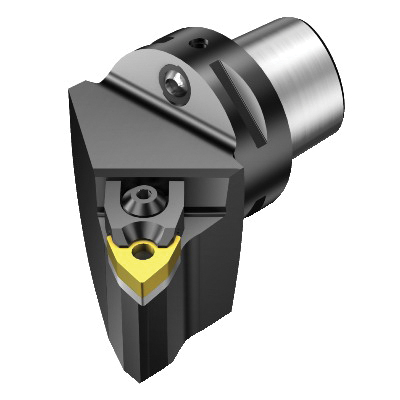

Sandvik Coromant 5726874 T-Max® P Turning Cutting Unit, 1.5748 in, 2.3228 in OAL, Left Hand, WNMG 060408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5726874 T-Max® P Turning Cutting Unit, 1.5748 in, 2.3228 in OAL, Left Hand, WNMG 060408 Insert
SKU1237687
MFGR #5726874
Your Cost: $407.68/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.5748 in Head Length/Projection, 2.3228 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 060408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.5748 in Head Length/Projection, 2.3228 in Overall Length, W-Trigon Insert, Insert Compatibility: WNMG 060408, Left Hand Cutting, 0.8661 in Center to Cutting Edge, Steel
Alternate Catalog Number C3-MWLNL-22040-06 Catalog Number 5726874 Country of Origin SE Gross Weight Per Pack 0.5000 lb Head Length|Projection 40 mm Insert Style WNMG Item Group 410 Material Steel Overall Length 59 mm Series T-Max® P UPC 11 69826229346 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 22 mm Cutting Direction Left Hand Insert Compatibility WNMG 060408 Insert Holding Method Pin/Wedge System Size C3 Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 10 bar coolant Wedge and hole clamping Decentral coolant exit with nozzles, adjustable 32 mm Dia connection 95 deg cutting edge -6 deg inclination 0 deg ramping 3.5 Nm torque 3/8 in insert seat size 40 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C3-MWLNL-22040-06 ISO Code: C3-MWLNL-22040-06
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C3-MWLNL-22040-06 |
| Catalog Number | 5726874 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.5000 lb |
| Head Length|Projection | 40 mm |
| Insert Style | WNMG |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 59 mm |
| Series | T-Max® P |
| UPC 11 | 69826229346 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 22 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | WNMG 060408 |
| Insert Holding Method | Pin/Wedge |
| System Size | C3 |
| Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Wedge and hole clamping |
| Decentral coolant exit with nozzles, adjustable |
| 32 mm Dia connection |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 3.5 Nm torque |
| 3/8 in insert seat size |
| 40 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C3-MWLNL-22040-06 |
| ISO Code: C3-MWLNL-22040-06 |
